SMT Female Box Header Connector | Surface Mount Soldering Type

Description

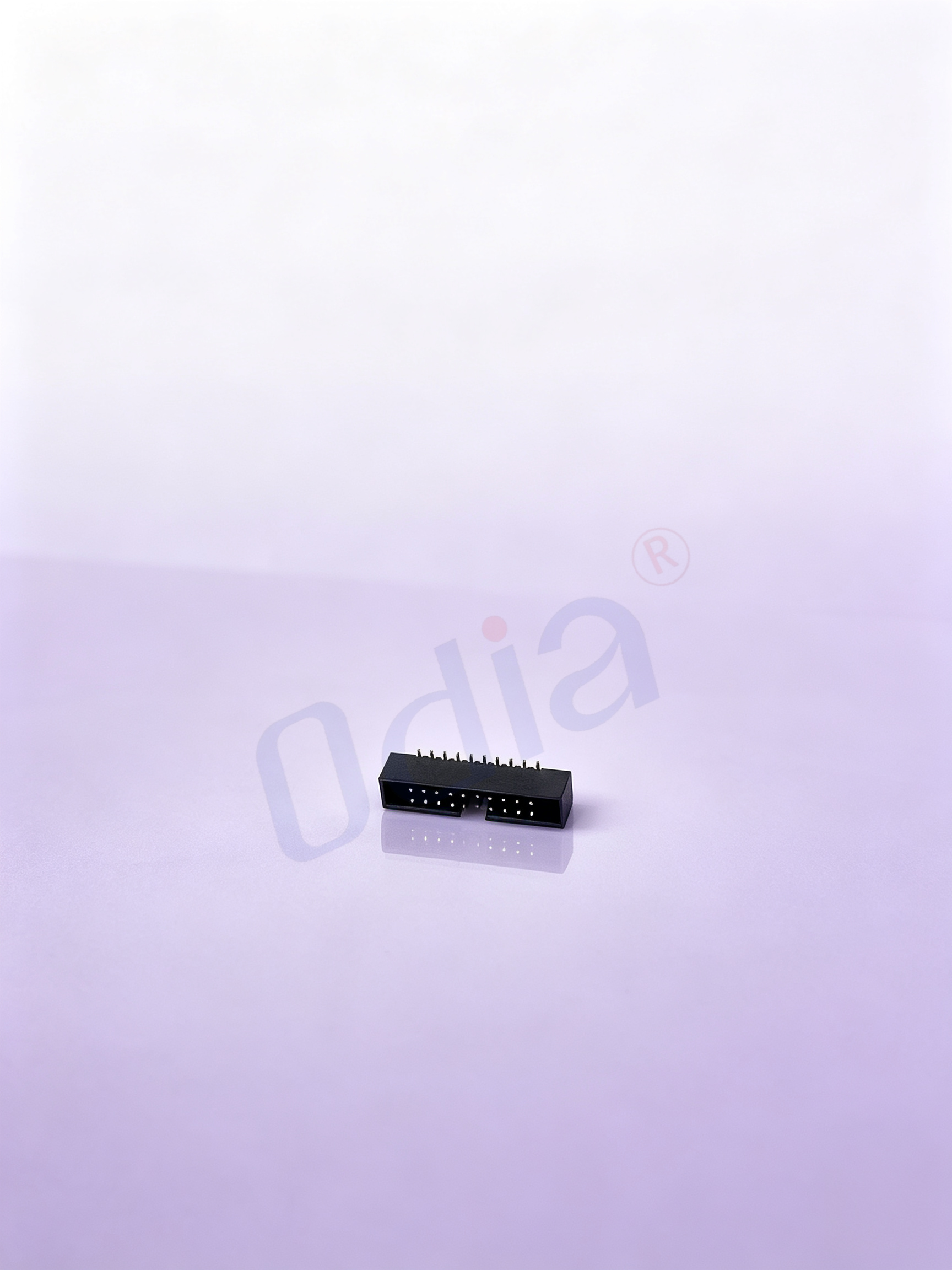

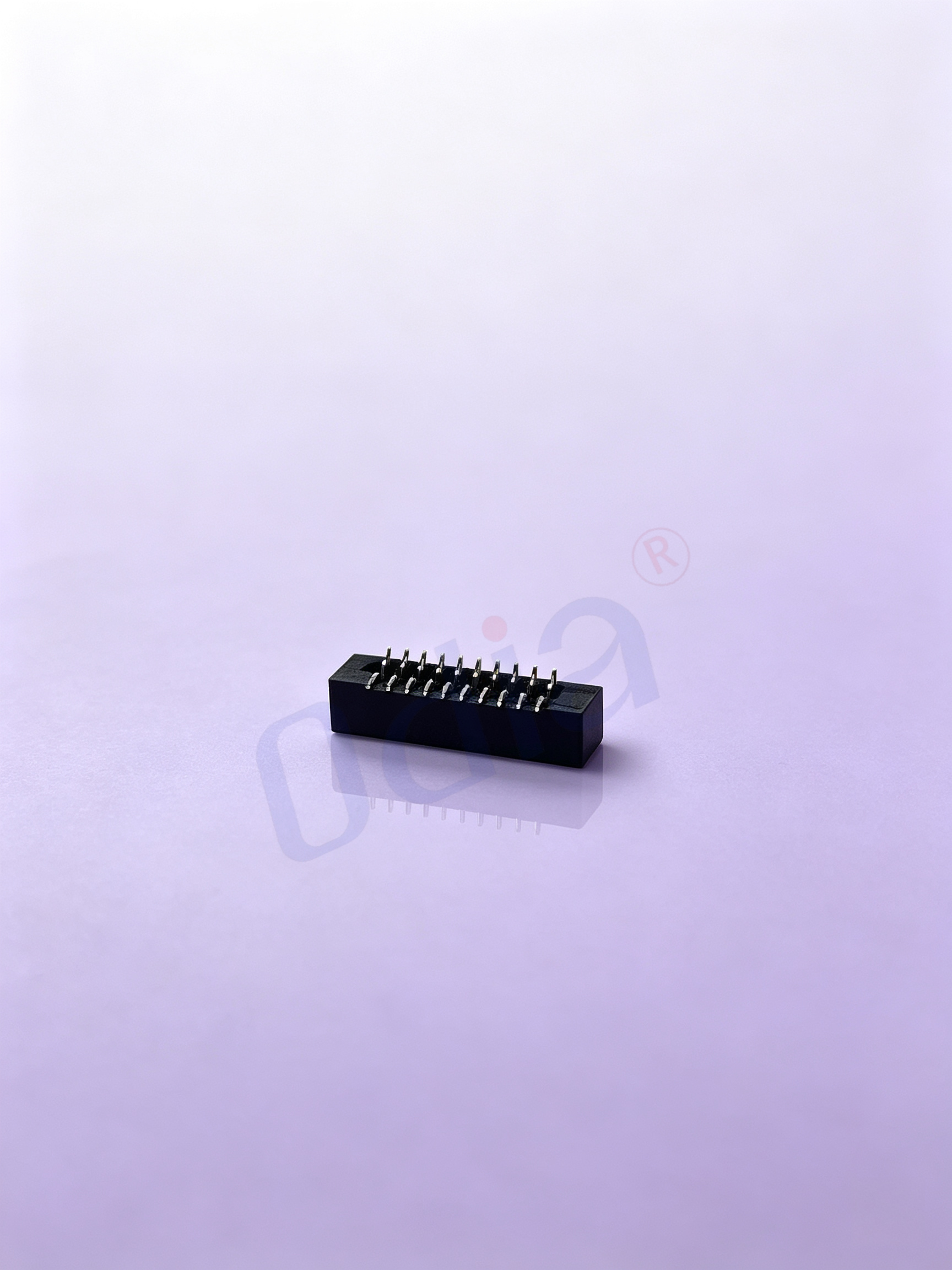

Our SMT Female Box Header Connector is a high-precision surface-mount electronic interconnect component specially engineered for SMT (Surface Mount Technology) soldering processes, widely used for board-to-board and board-to-wire connection in compact electronic devices. Adopting professional patch soldering mounting design, this female socket perfectly matches automated SMT production lines, featuring high positioning accuracy, stable soldering performance and excellent batch consistency, which fully meets the mass production and high-reliability assembly requirements of modern electronic manufacturing industries.

In terms of material configuration, the connector’s insulator is made of high-grade flame-retardant thermoplastic engineering plastic with UL94 V-0 flame retardant rating, outstanding high temperature resistance and dimensional stability. It can withstand the high-temperature impact of reflow soldering process without deformation, shrinkage, discoloration or structural damage, ensuring stable structural performance throughout long-term industrial production and equipment service life. The conductive contact terminals are forged from high-purity copper alloy with excellent electrical conductivity and mechanical toughness, effectively avoiding terminal fracture and poor contact caused by frequent plugging and vibration. The surface of the contacts supports multiple electroplating treatments, including full tin plating, selective gold plating and full gold plating. The tin-plated version provides cost-effective and reliable solderability for conventional civilian electronic products, while the gold-plated model boasts superior oxidation resistance, corrosion resistance and low contact resistance, ideal for high-end, high-precision and long-service-life equipment scenarios.

Specifications & Parameters

Basic Structural Parameters

Product Features & Advantages

This SMT surface-mount female box header connector has gathered multiple structural, technological and performance advantages, becoming a preferred interconnect component for high-precision and miniaturized electronic equipment. First of all, the professional SMT patch mounting design is the core advantage of the product. Different from traditional through-hole soldering connectors, this surface-mount structure does not need to drill holes on the PCB board, which greatly saves PCB board space, simplifies PCB layout design, and effectively reduces the overall thickness and volume of electronic products. It is the best choice for thin, light and miniaturized intelligent electronic devices, perfectly adapting to the development trend of miniaturization and high integration of modern electronic products.

Secondly, the product is fully compatible with automated SMT production lines, which greatly improves production efficiency and reduces manufacturing costs. The connector has precise positioning and standard patch packaging, which can realize automatic feeding, automatic mounting and automatic reflow soldering by SMT equipment, without manual auxiliary operation. It effectively solves the problems of low efficiency and high error rate of manual plug-in welding, greatly improves the batch production qualification rate of products, and reduces labor costs and time costs for electronic manufacturers. The flat and neat patch structure can ensure uniform solder joint formation during reflow soldering, with firm solder joint adhesion, no virtual welding, missing welding and continuous welding defects, and excellent welding consistency.

Thirdly, it has excellent mechanical stability and environmental adaptability. The high-toughness copper alloy terminal structure has strong anti-vibration and anti-shock capabilities. After SMT soldering and fixing, the connector is closely attached to the PCB board, with no gap displacement. It can maintain stable connection performance in vibration, impact and frequent temperature alternating environments, avoiding equipment failure caused by loose contact. The high-temperature flame-retardant plastic shell has good weather resistance, which can resist aging, dust and moisture erosion, and maintain stable structural and electrical performance in long-term working conditions, greatly extending the service life of the whole equipment.

Fourthly, the product has superior electrical transmission performance. The high-conductivity copper terminal and low-resistance electroplating process ensure lossless transmission of power signals and high-frequency weak signals, effectively reducing signal attenuation, voltage drop and heat generation during operation. The high insulation performance between pins completely isolates current interference between adjacent circuits, ensuring stable and accurate signal transmission, and effectively avoiding equipment operation errors caused by signal disorder. Multiple electroplating schemes flexibly balance product performance and cost, enabling customers to select appropriate configurations according to product positioning, whether for cost-sensitive mass civilian products or high-reliability industrial and medical equipment, it can meet the demand.

Fifthly, the product has high universality and customizability. The standard size design realizes universal interchangeability with mainstream brand connectors in the market, with strong compatibility and convenient product replacement and maintenance. At the same time, we support diversified personalized customization, including pin number adjustment, structural optimization, anti-reverse insertion function upgrade, color customization and special electroplating processing, which can perfectly match customers' unique PCB design and product structural requirements, providing one-stop professional connection solutions for different application scenarios.

Wide Application Scenarios

With its miniaturized structure, high stability, automatic assembly adaptability and excellent electrical performance, our SMT female box header connector is widely used in consumer electronics, industrial control, new energy, medical electronics, smart home, communication equipment and other fields, covering almost all electronic products that require miniaturized surface-mount connection.

In the consumer electronics industry, the product is mainly used in smart phones, tablet computers, Bluetooth headsets, smart watches, charging treasures, notebook computers and other portable electronic devices. These products have extremely strict requirements on internal space and thickness. The SMT patch structure of the connector can save maximum PCB space, help products achieve ultra-thin and lightweight design, and ensure stable internal circuit connection and signal transmission of precision portable devices.

In the field of industrial control and automation equipment, the connector is applied to PLC control modules, industrial sensor circuit boards, relay control boards, industrial display screens, servo drive modules and automated detection equipment. Industrial equipment often works in complex environments such as vibration, high temperature and dust. The product's excellent anti-vibration, high temperature resistance and stable electrical performance can ensure long-term reliable operation of industrial control circuits and avoid system failure caused by poor connection.

In the new energy industry, it is widely used in battery management system (BMS) circuit boards, photovoltaic control modules, energy storage equipment auxiliary boards, new energy vehicle on-board electronic modules and charging equipment control boards. New energy equipment has high requirements for connection safety and stability. The product's high insulation, high pressure resistance and anti-aging performance can adapt to the long-term high-load working state of new energy equipment and ensure the safe operation of power and signal circuits.

In the medical electronics field, the gold-plated high-reliability version of the connector is used in precision medical testing instruments, household medical devices, rehabilitation equipment control boards and medical monitoring modules. Medical equipment requires extremely high connection stability and safety. The product's low resistance, anti-oxidation and high-precision connection performance can effectively reduce equipment failure rates and meet the strict quality standards of medical electronic products.

In addition, the product is also applicable to smart home equipment such as smart speakers, smart cameras, intelligent lighting control modules and home appliance control boards, as well as communication auxiliary equipment, security monitoring equipment, precision testing instruments and automotive electronic auxiliary modules. Its powerful comprehensive performance and wide adaptability make it a universal core connection component in the electronic manufacturing industry.

FAQ

Q1: What is the difference between SMT surface-mount female box header and through-hole welding female socket?
A: The biggest difference lies in the installation method and application scenario. The SMT surface-mount type is attached to the PCB surface for reflow soldering, no hole drilling is required, which saves space, is suitable for miniaturized products, and supports full-automatic SMT mass production with high efficiency. The through-hole type requires pin penetration and welding, with stronger mechanical firmness, but occupies larger space and is mostly suitable for large-sized industrial equipment. You can choose according to your product size and production process.

Q2: Is this SMT female box header compatible with automatic SMT mounting and reflow soldering?
A: Absolutely yes. Our products are specially optimized for SMT production lines, with standard tape and reel packaging, precise positioning size and high-temperature resistant materials. It can perfectly adapt to automatic mounting, high-speed placement and reflow soldering processes of mainstream SMT equipment, with high welding yield and stable batch quality.

Q3: What surface plating options are available for the connector terminals?
A: We provide three mainstream plating solutions: full tin plating, selective gold plating and full gold plating. Tin plating is cost-effective with good solderability, suitable for ordinary consumer electronic products; selective gold plating balances performance and cost, suitable for medium and high-end equipment; full gold plating has the best anti-oxidation and anti-corrosion performance, suitable for high-precision, long-life and harsh environment application scenarios.

Q4: Can you provide customized services for pin count, size and structure?
A: Yes. We support full-range personalized customization, including different pin numbers, pitch size adjustment, plastic height customization, anti-misinsertion structure design, color customization and special plating thickness requirements. Customers can provide PCB drawings or sample requirements, and our technical team will provide exclusive customization solutions.

Q5: What is the working temperature range and service life of the product?
A: The product's normal working temperature range is -40℃ to +105℃, which can adapt to most indoor and industrial working environments. The standard plugging life can reach more than 500 times, and the electrical and mechanical performance remains stable after long-term use, with low failure rate.

Q6: Do you have matching male box header connectors for supporting use?
A: Yes. We have complete supporting male pin headers, 90-degree bent headers and other matching products, which can form a complete board-to-board connection solution. Customers can purchase matching connectors in one stop to ensure perfect assembly compatibility.

Q7: Can you provide product samples and official test datasheets?
A: We support free sample testing for customer verification. Meanwhile, we can provide official product datasheets, material certification reports, flame retardant certification and other qualification documents to meet customer product testing and factory inspection requirements.
