PV Monitoring Cable – Skyworth 4Pin Female to Straight JD8P

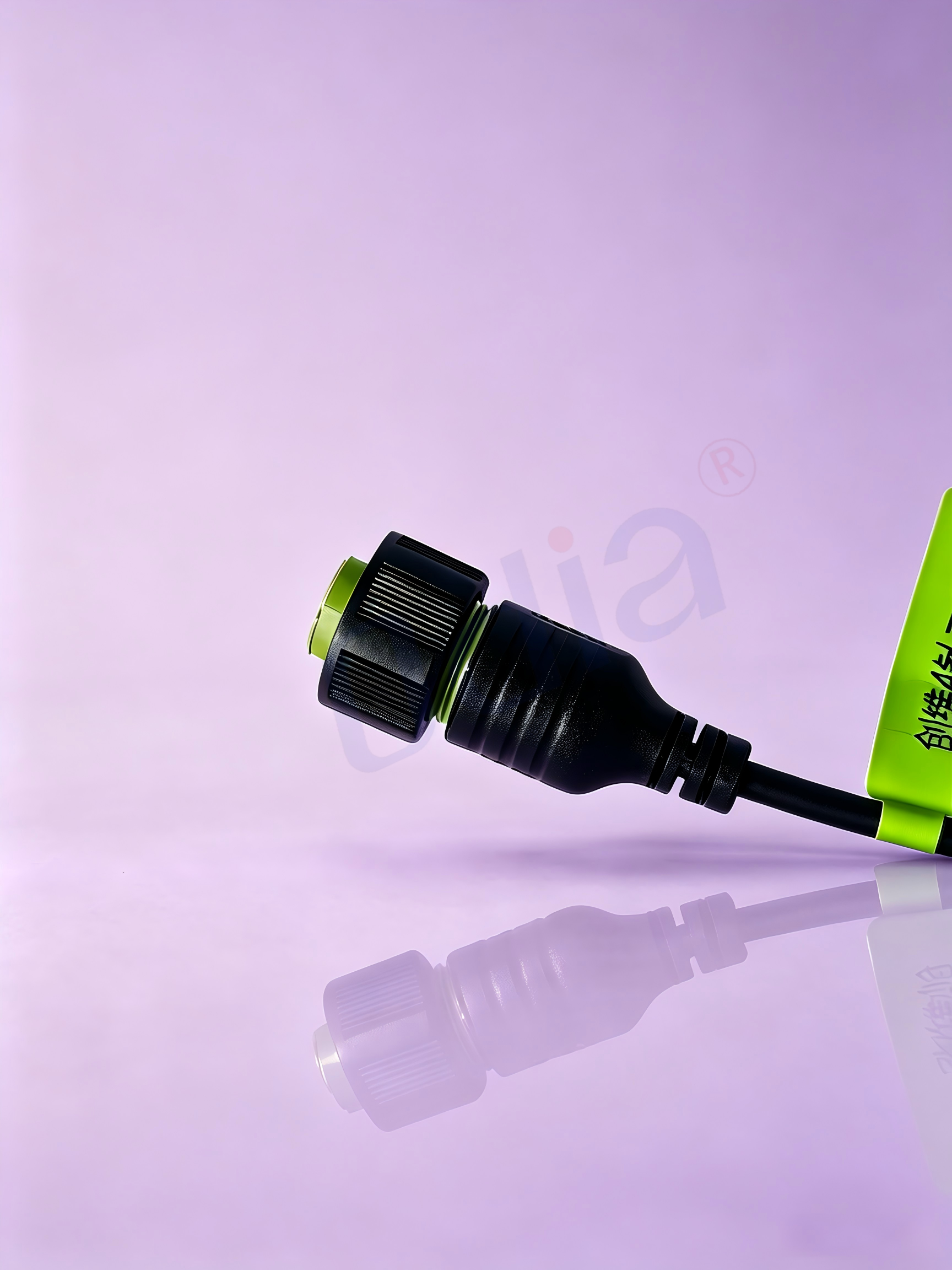

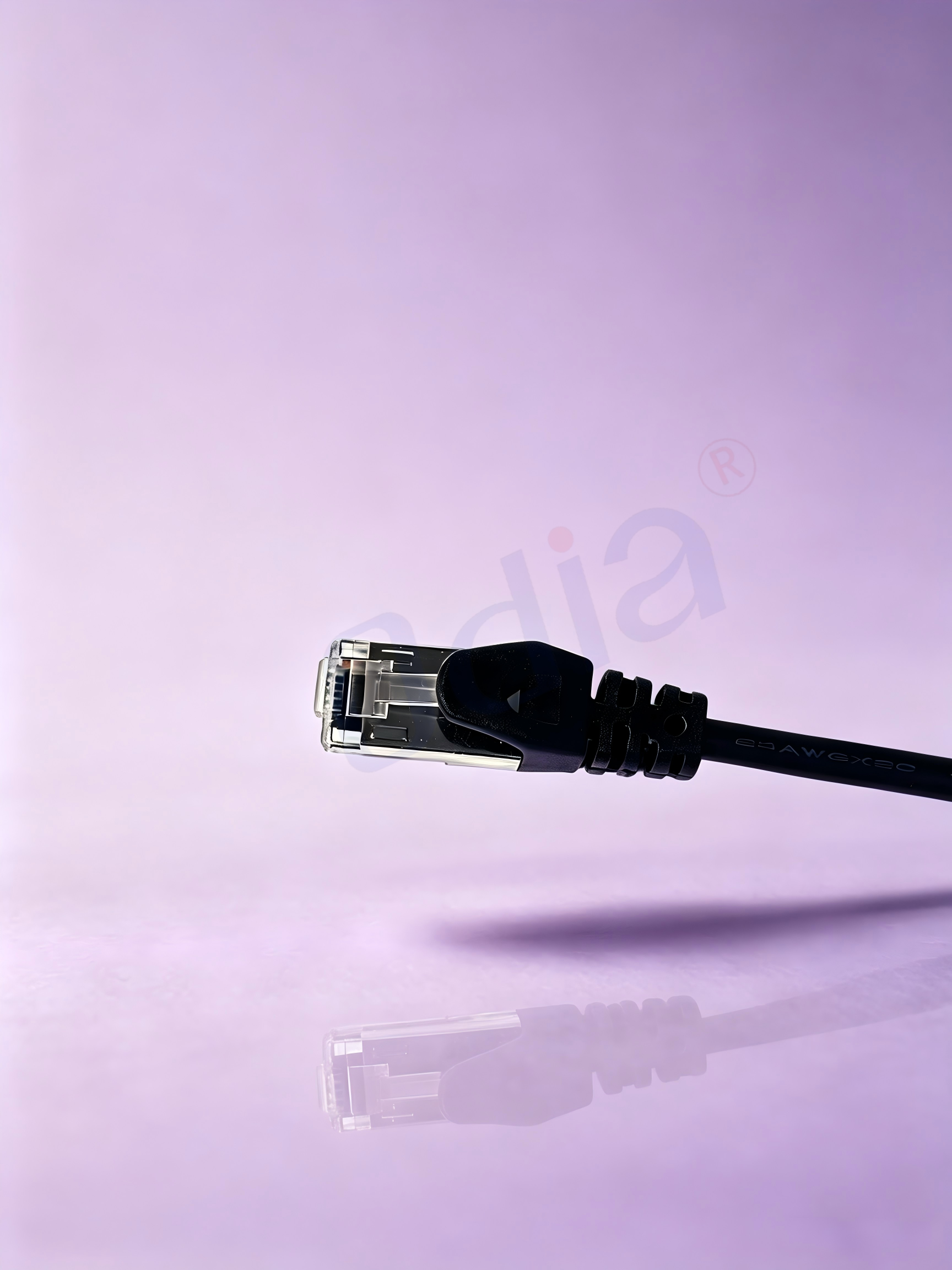

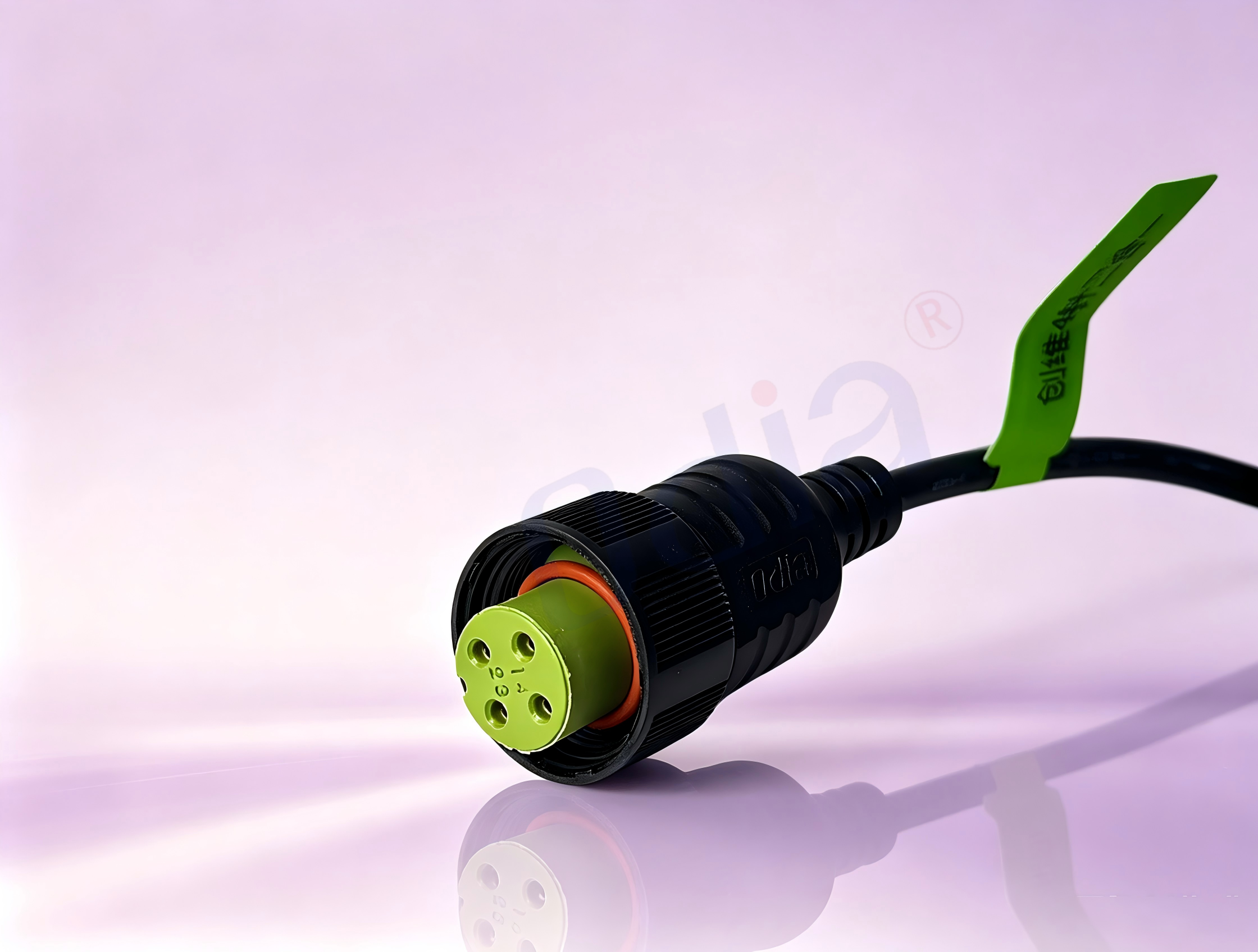

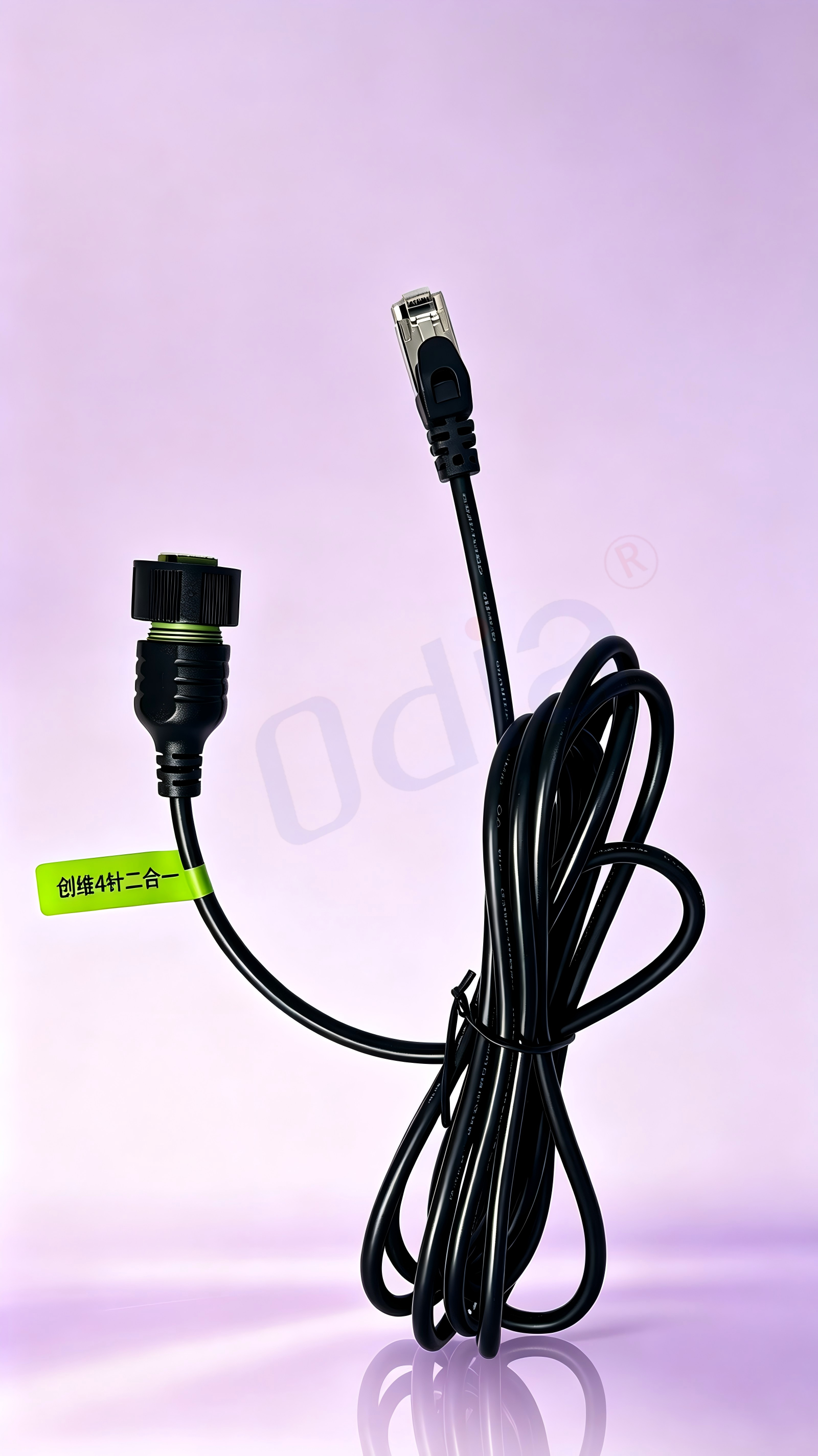

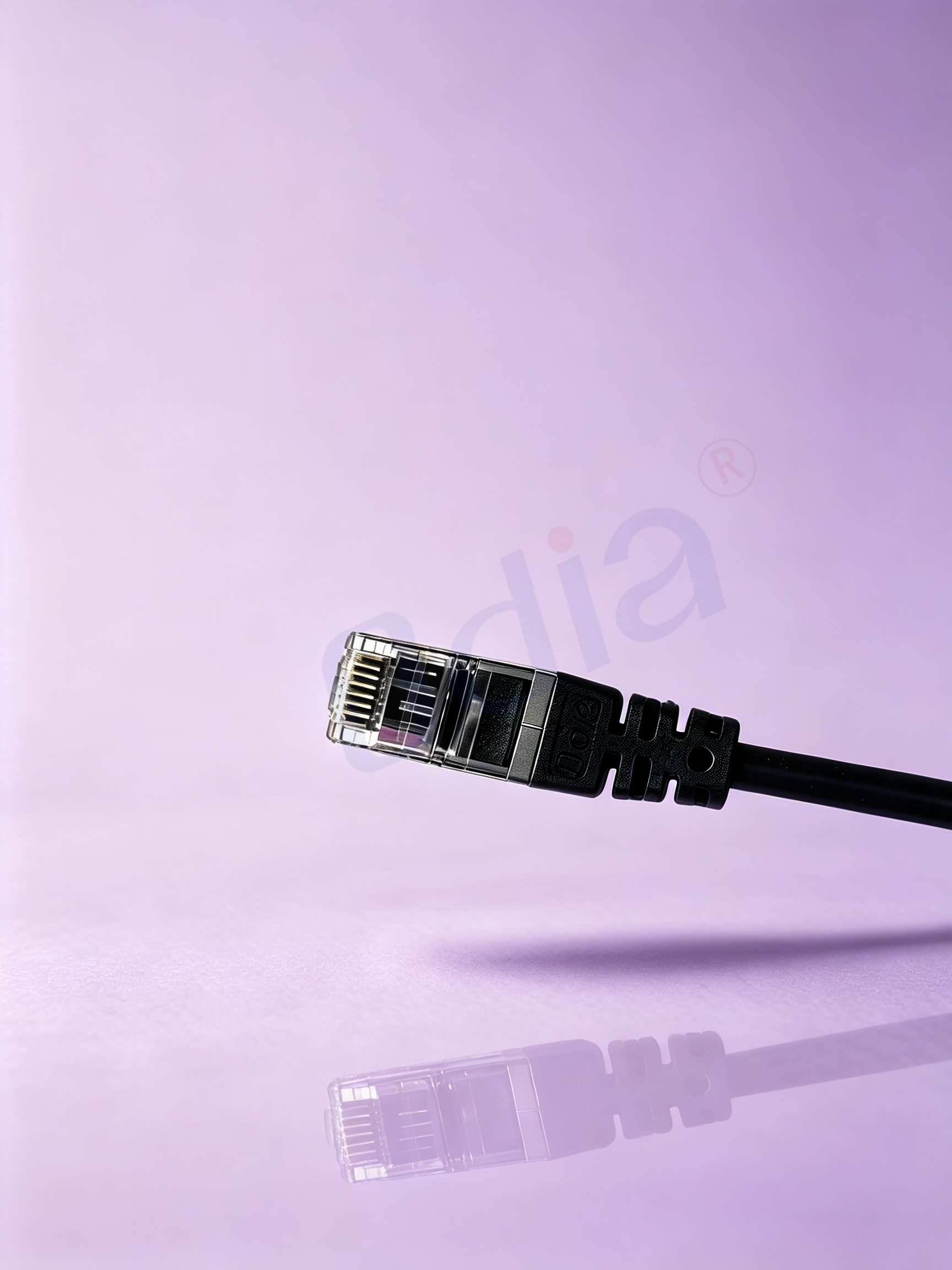

The PV Cable – Skyworth 4Pin Female to Straight RJ45 Network Cable is a customized pre-assembled harness specially developed for photovoltaic monitoring systems. One end adopts standard Skyworth-compatible 4P female pin connector, directly wired to straight RJ45 Ethernet plug on the other end. It realizes seamless conversion between photovoltaic equipment signal interface and standard industrial Ethernet network port. Optimized for solar monitoring collectors, string monitoring modules, photovoltaic smart junction boxes and distributed PV monitoring terminals, this cable supports stable transmission of monitoring data, temperature sampling signals and low-voltage power supply signals. Manufactured with high-standard PV-grade cable raw materials and precision crimping technology, the harness features anti-ultraviolet, weather-resistant, anti-interference and long service life, perfectly adapting to outdoor photovoltaic power station environments. It has become a preferred dedicated connection wire for intelligent photovoltaic monitoring solutions.

General Product Information

Electrical Performance Parameters

Cable Structure & Material Specifications

Mechanical & Environmental Parameters

All finished cables pass 99.9% continuity test, wiring sequence inspection and appearance screening before delivery. Strict crimp force and pull force tests ensure terminals will not fall off under long-term vibration.

First of all, targeted interface matching for Skyworth photovoltaic monitoring equipment. This harness adopts precise 4Pin female terminal structure fully compatible with Skyworth string monitoring collectors and smart photovoltaic modules. Customers do not need to make secondary wiring or add transfer adapters. Direct connection between monitoring equipment and network communication terminals greatly reduces wiring faults on site and shortens construction cycle of photovoltaic projects.

Secondly, integrated straight RJ45 design simplifies on-site networking. The straight-out RJ45 plug can be directly inserted into industrial switches, data acquisition gateways and monitoring hosts. It avoids signal loss and poor contact caused by multiple transfer connections. The standardized Ethernet port facilitates unified network layout of distributed photovoltaic power stations.

Thirdly, outdoor PV-grade cable with outstanding weather resistance. The outer sheath material is specially optimized for solar scenarios, resisting long-term sunlight ultraviolet radiation, rain erosion, frost and temperature alternation. It effectively prevents cable cracking, hardening and insulation aging under outdoor exposure, guaranteeing stable operation for more than 8 years in open-air PV power plants.

Fourthly, reliable anti-interference design for monitoring signal integrity. Customers can select shielded version according to site electromagnetic environment. The braided shielding layer suppresses interference from photovoltaic inverters, power cables and high-power electrical equipment, avoiding data packet loss, signal distortion and abnormal monitoring data. Stable sampling data helps operators accurately track component working status, improve power station operation efficiency.

Fifthly, strict harness processing technology for long-term stability. All terminals adopt precision automatic crimping process to guarantee stable electrical connection. Internal wiring follows official Skyworth pin assignment specification to prevent reverse connection and signal failure. The transition between cable and connector is equipped with anti-bending strain relief structure to avoid wire breakage caused by frequent bending and pulling on site.

Sixthly, flexible customization capability. We support arbitrary cable length adjustment, shield selection, wire gauge change and custom packaging. Small batch sample orders and bulk project orders are both acceptable, adapting to distributed rooftop PV, large ground power station and energy storage supporting monitoring projects.

In addition, easy field maintenance. Standard interfaces facilitate later equipment replacement and troubleshooting. When monitoring modules need maintenance, operators can quickly plug and unplug without cutting cables, lowering maintenance costs of photovoltaic power stations.

Photovoltaic String Monitoring System

Widely used in ground photovoltaic power stations, rooftop distributed PV systems. Connect Skyworth string monitoring collectors to industrial Ethernet gateways to transmit component voltage, current, temperature and fault alarm data, realizing real-time monitoring of each PV string.

Smart PV Junction Box Monitoring

Serve as signal connection wire of intelligent monitoring junction box. Collect operating parameters inside junction boxes and upload data to remote cloud platform through RJ45 network port, realizing fault positioning of abnormal modules.

Energy Storage & Photovoltaic Hybrid Power Station

Applicable for signal interconnection between photovoltaic monitoring terminals and energy storage management system. Support coordinated data collection of solar power generation and battery energy storage equipment.

Industrial Factory Rooftop PV Projects

Factories usually have complex electromagnetic environment caused by production equipment. The shielded version can effectively resist interference and guarantee continuous stable data transmission for rooftop photovoltaic monitoring network.

Commercial & Residential Distributed PV

Suitable for small and medium-sized commercial buildings, household distributed photovoltaic systems. Compact wiring structure saves installation space of monitoring cabinets, convenient for rapid construction by engineering contractors.

Photovoltaic Operation & Maintenance Monitoring Network

Support networking of mobile monitoring terminals and fixed acquisition equipment. Provide reliable data transmission channel for power station remote operation and maintenance platform, helping engineering teams realize unattended monitoring.

Q1: Is this cable fully compatible with all Skyworth photovoltaic monitoring modules?

A: Our 4Pin female connector follows official interface definition of Skyworth monitoring equipment. It supports mainstream string collectors and smart modules. For newly launched equipment models, we suggest testing samples before bulk purchasing to confirm pin assignment consistency.

Q2: Can this cable be buried directly outdoors?

A: The cable itself owns UV-resistant and weatherproof property, but we recommend using conduit protection for direct buried laying to avoid mechanical damage by stones and construction. Do not immerse cables in water for long time.

Q3: Can I order customized cable lengths?

A: Yes. We support any customized length from 0.3 meters to over 50 meters. Please inform our sales team of exact length, shield requirement and order quantity for quotation.

Q4: What should I pay attention to during on-site installation?

A: Avoid sharp bending, heavy extrusion and dragging the cable. Keep connectors fully locked after insertion. Unused ports should be equipped with protective caps to prevent dust and moisture entering contact terminals.

Q5: Does this harness support PoE power supply transmission?

A: It supports low-power auxiliary power transmission matched with photovoltaic monitoring modules. If high-power PoE equipment needs to be connected, please send technical parameters to our engineers for feasibility evaluation.

Q6: What is the warranty period for the cables?

A: Under normal installation and working environment, we provide standard product quality warranty. Damages caused by artificial pulling, cutting and improper construction are not covered under warranty terms.

If you are looking for stable, cost-effective PV monitoring dedicated cables including Skyworth 4Pin Female to straight RJ45 network harness, welcome to contact our professional sales and technical support team.

We are a professional manufacturer of industrial wiring harnesses and photovoltaic connection components, with complete production lines and strict quality control system. All products pass standard environmental and electrical tests, stable batch quality. We provide one-stop services including technical consultation, pin definition confirmation, sample testing, bulk quotation and customized harness development.

Our technical team possesses rich experience in photovoltaic monitoring connection solutions. We can offer wiring verification, parameter matching and optimized harness design according to your power station project requirements. We sincerely cooperate with photovoltaic engineering companies, system integrators, equipment manufacturers and global distributors.

Please send your detailed demand by email or inquiry message. We will reply quickly and provide product specifications, dimensional drawings, test reports and exclusive project quotation, fully supporting your photovoltaic project development and large-scale construction arrangement.
