Gateway Conversion Box with Antenna Port & Four LightPipes

Description

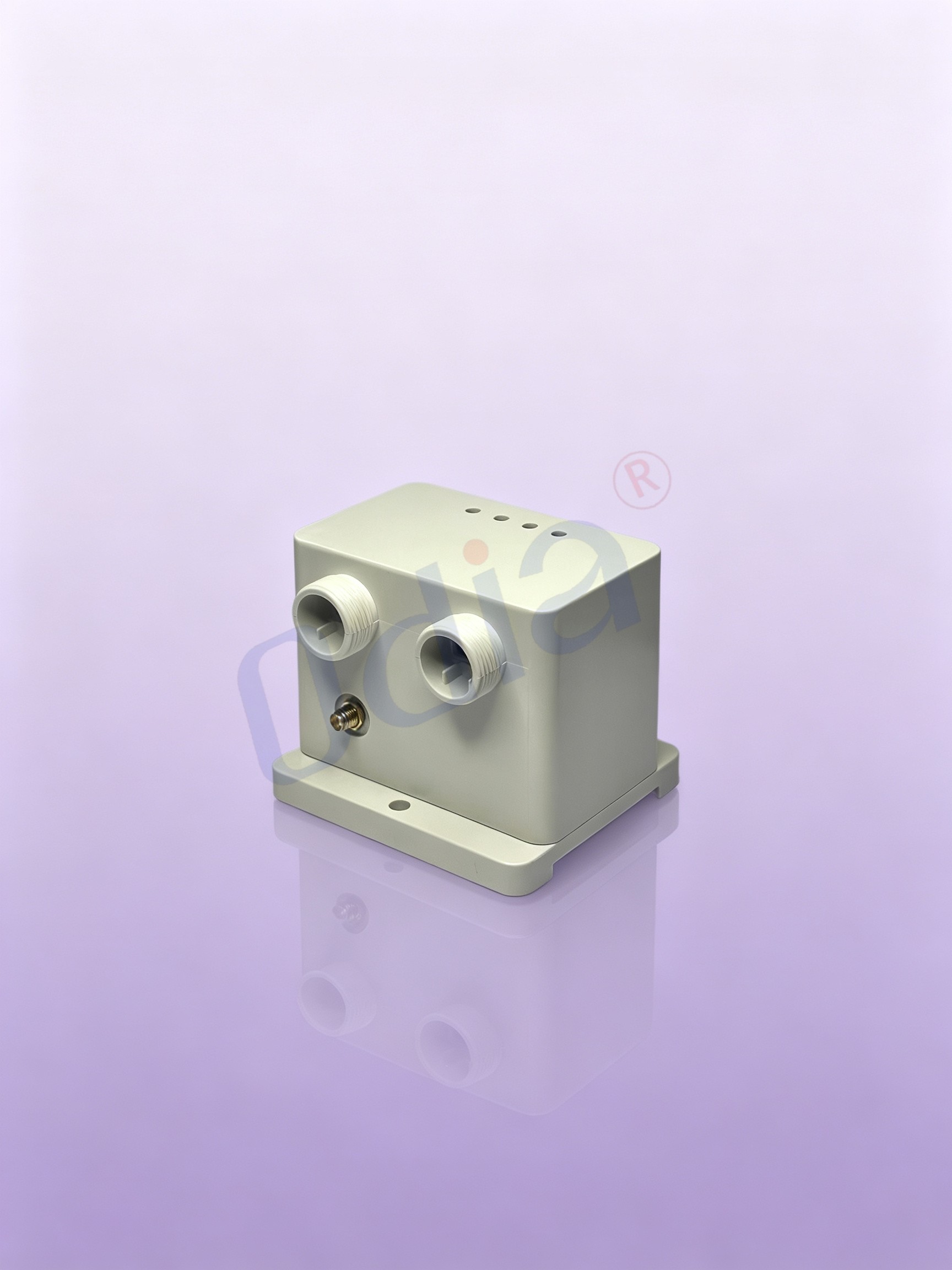

This Gateway Conversion Box is a robust, compact IoT enclosure specially designed for protocol conversion and wireless data transmission applications. Equipped with an external antenna connector and four topmounted lightpipes for status indication, this housing assembly comes with dual cable gland ports and an integrated fixed mounting base. It serves as a complete mechanical carrier for userassembled gateway PCBs, edge computing modules and signal conversion units.

Designed for industrial, commercial and smartsite deployment, this enclosure provides reliable physical protection, convenient wiring structure, visual status feedback and external wireless signal output. System integrators can embed selfdeveloped or offtheshelf gateway circuit boards inside this box to build finished IoT conversion devices. The splitstructure housing simplifies onsite installation, internal assembly and field maintenance. Lightgrey highstrength modified PC material delivers excellent antiaging, impactresistant performance, adapting to indoor and sheltered outdoor working conditions. Widely used in factory automation, smart building control, newenergy monitoring, smart city and agricultural IoT projects, this conversion box helps customers shorten product development cycles and avoid expensive new mold investment for custom gateway housings.

Specifications & Parameters

1.1 Mechanical Specifications

1.2 Environmental Specifications

1.3 Interface Mechanical Description

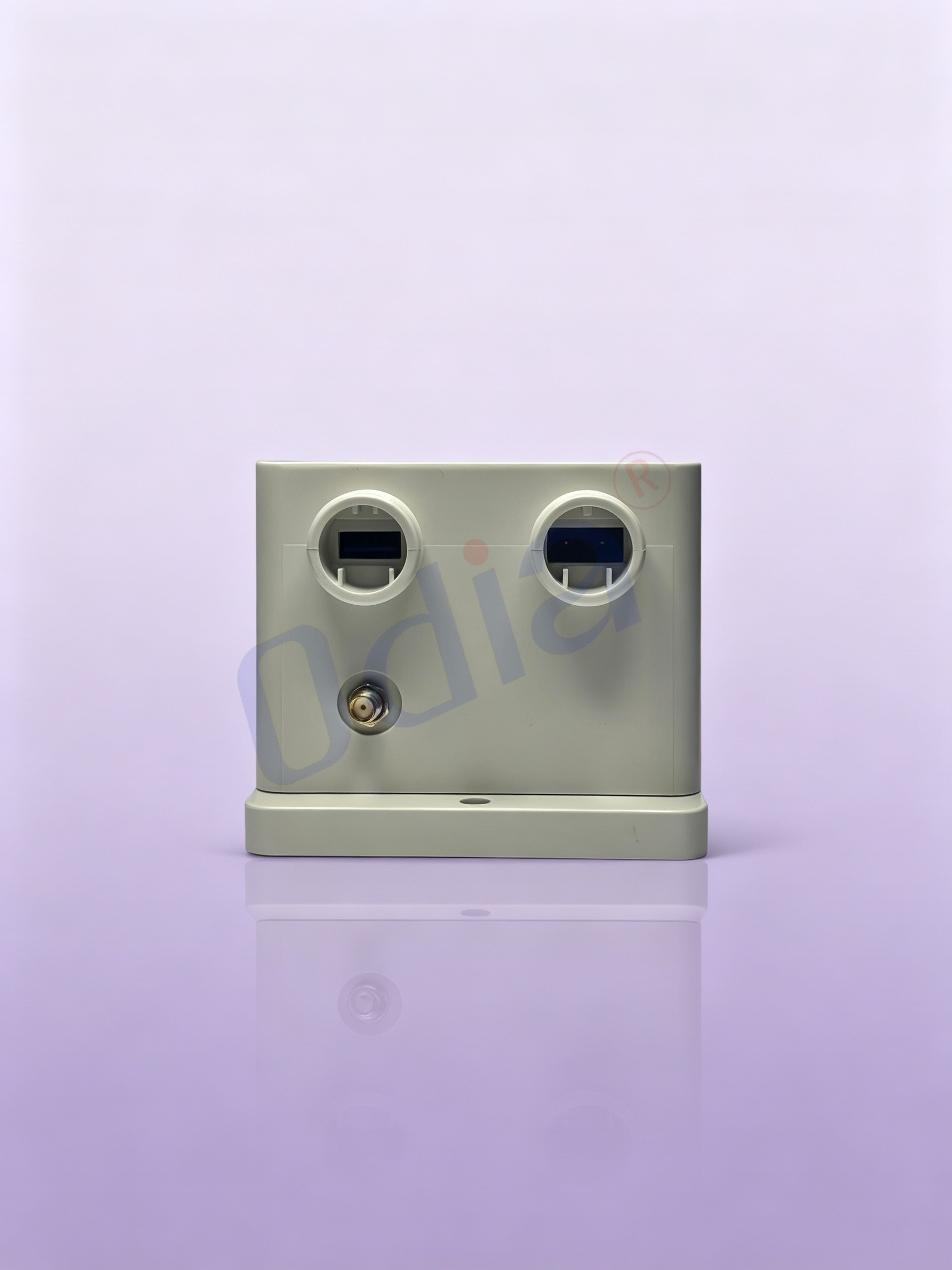

• Antenna Port:Metal threaded antenna connector is preinstalled on the side face. It leads RF signal from internal PCB out to external antenna. Mechanically compatible with 2.4 GHz, LoRa, SubGHz and other mainstream IoT wireless bands. Actual radiofrequency performance depends on customerembedded gateway circuit.

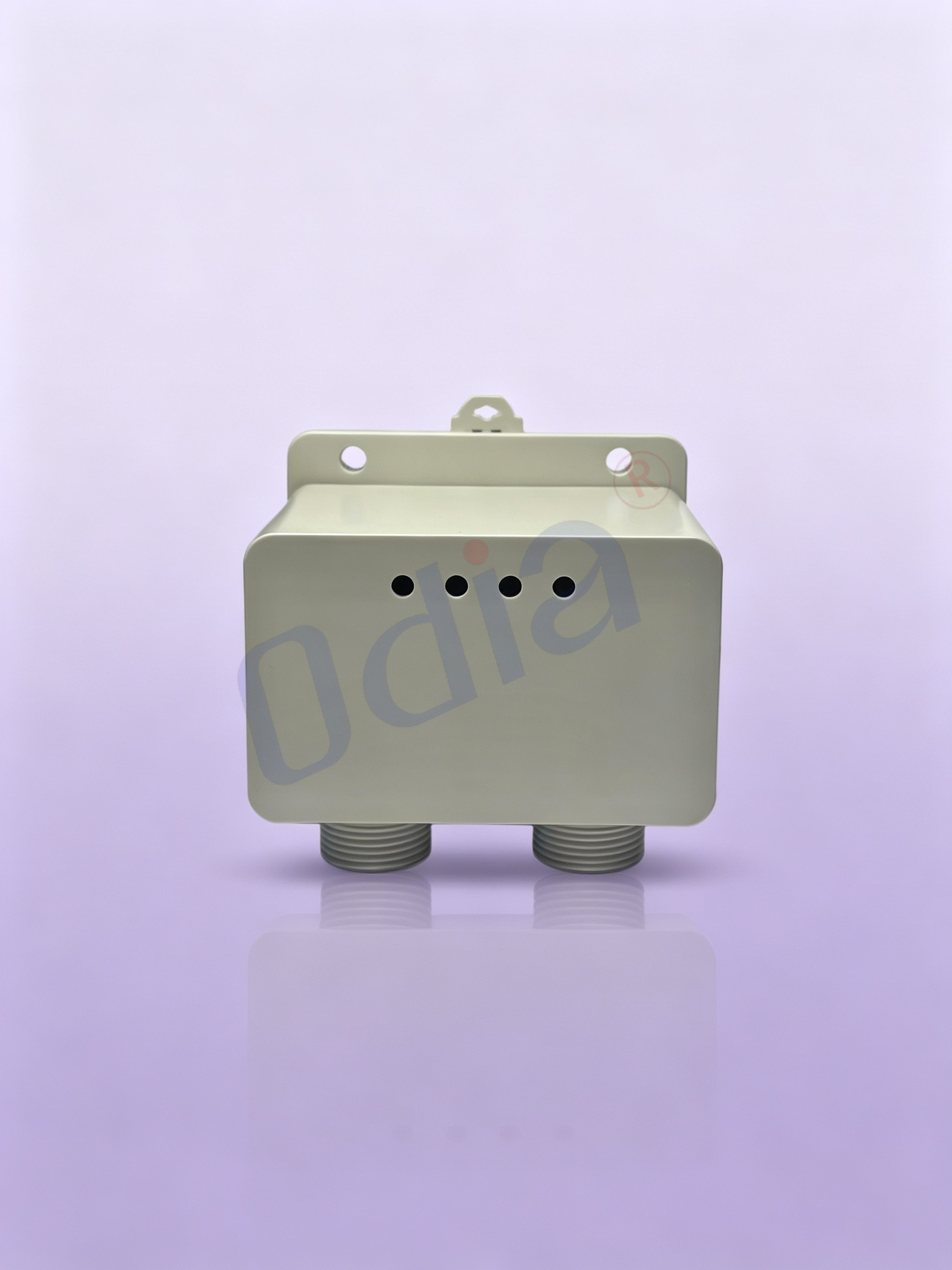

• Four LightPipes: Four independent lightpipes are arranged on the top surface of the enclosure. They transmit LED light from internal circuit board to outside. Each lightpipe corresponds to one device status: power supply, network link, data transmission, fault alarm. Independent structure prevents light crosstalk between different indicator channels. No need to open the box shell for status inspection.
• Dual Cable Gland Ports: Two standard threaded cable entry openings accept industrystandard cable glands. Users can select cable glands according to actual cable outer diameter, to realize cable fixation, strain relief and dustproof sealing for incoming power and signal wires.
• Internal Mounting Bosses: Multiple preformed screw bosses inside the cavity support PCB fixing. Customers can install gateway board, power module and terminal blocks without secondary housing machining.
• Grounding Compatibility: Reserved space for internal ground wiring, convenient for EMC antiinterference design for industrialgrade finished equipment.

1.4 Compliance Notes

This mechanical housing is designed in reference to ISO 9001 standards for industrial control equipment. Final product certification shall be completed together with customerintegrated electronic modules according to endproduct application requirements. The ingress protection level of finished equipment is determined by matching cable glands, sealing accessories and assembly quality.

2. Product Features and Advantages

2.1 Four Independent LightPipes for Intuitive External Status Feedback

One core highlight of this gateway conversion box is four dedicated topmounted lightpipes. In field operation scenarios, maintenance personnel can directly observe device working status from outside the enclosure. There is no need to open the box for inspection work, which greatly reduces maintenance workload and avoids dust ingress caused by frequent shell opening.

Each lightpipe can map to one running state indicator: power OK, wireless network connection, data uploading status and system fault warning. Independent opticalisolation design eliminates light leakage and crosstalk. For devices installed high on walls or inside dense electrical cabinets, visual external indication improves inspection efficiency significantly. Compared with simple drilledhole LED schemes, integrated lightpipe structure protects internal LED components from dust, collision and moisture, extending service life of finished gateway equipment.

2.2 External Antenna Interface Optimizes Wireless Communication Performance

Many enclosed plastic housings bring obvious radiofrequency signal attenuation for wireless IoT devices. This conversion box solves this pain point with a builtin metal antenna stud for external antenna connection. RF signal is guided out of the enclosure to match external antennas. Users can select omnidirectional or directional antennas based on site obstacles, communication distance and radiofrequency band requirements.

The metal antenna connector maintains stable connection performance under longterm temperature cycling and industrial site vibration. It effectively improves wireless signal coverage for LoRa, 2.4 GHz and SubGHz IoT networks. This design avoids weaksignal defects of fullyclosed internalantenna housings, delivering reliable wireless performance for factories, newenergy sites and scattered field monitoring nodes.

2.3 SplitType Structure Simplifies Onsite Installation and Wiring

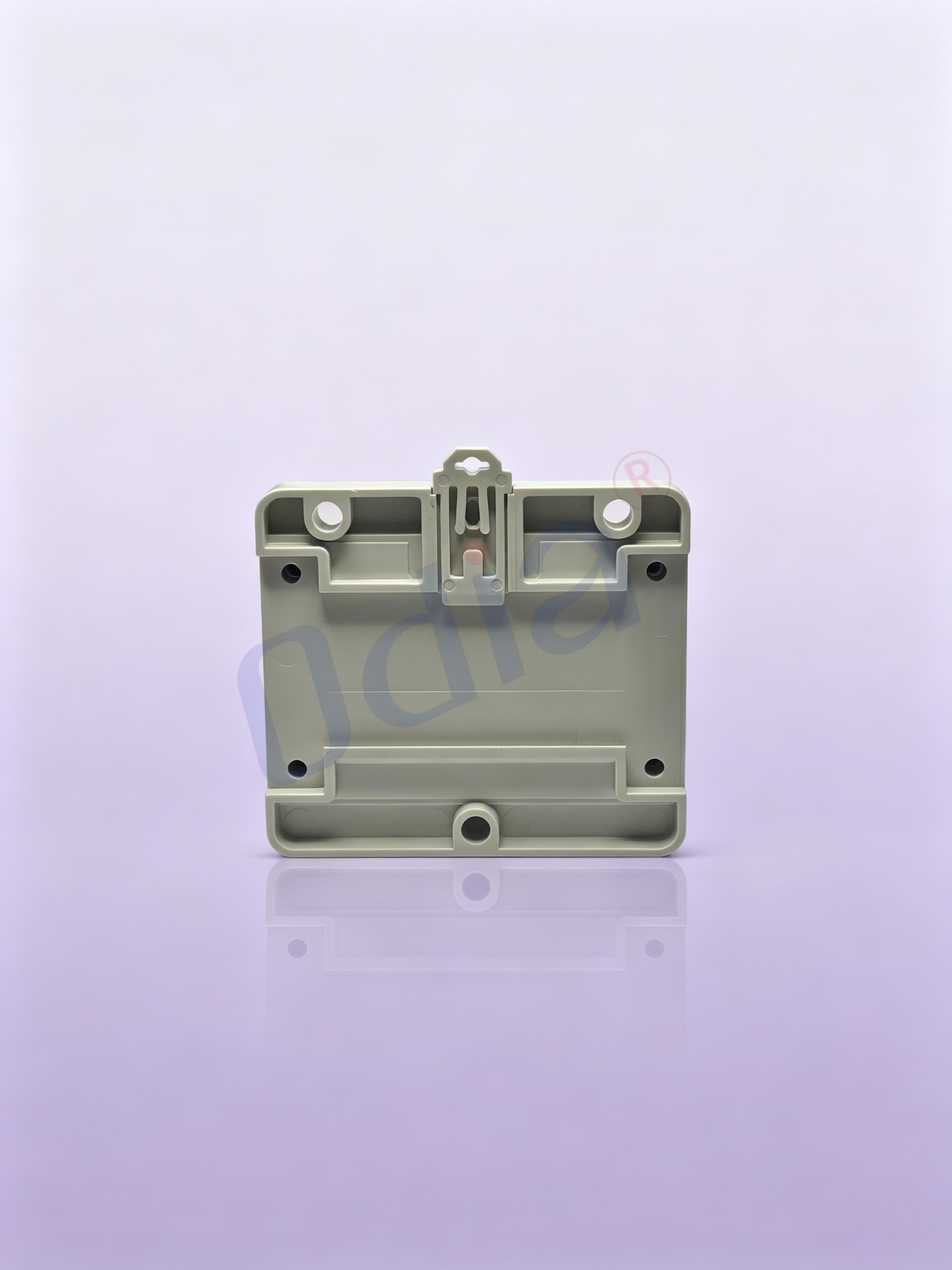

The whole set adopts splittype structure: separate mounting base and main box body. Field operators can fix the mounting base on wall or cabinet surface first. Then route cables through cable gland openings, complete internal wiring and PCB assembly, and finally fasten the main box onto the prefixed base. This workflow brings great convenience for onsite construction.

Two standard cable gland ports support power cables and multicore signal cables feeding into the enclosure. After matching proper cable glands, incoming cables obtain reliable strainrelief and dustproof protection. Highquality modified PC material provides outstanding impact resistance and antiaging property, coping with temperature changes in industrial workshops and semioutdoor sheltered locations. The uniform lightgrey matte appearance fits most industrial and smartfacility deployment environments.

2.4 Highcompatibility Internal Cavity Reduces Custom Development Cost

This gateway conversion box is a universal mechanical platform instead of housing for one dedicated circuit board. Abundant inner space and preformed PCB screw bosses support various userembedded gateway modules: serialtonetwork conversion gateway, wireless protocol aggregation unit, edge acquisition gateway, sensor signal conversion box and more.

System integrators and hardware developers can deploy selfdesigned or mainstream commercial gateway PCBs inside. Only simple alignment work is required: align PCB LEDs to top lightpipes and connect RF circuit to external antenna port. No mold modification is needed for most medium and smallbatch projects. Customers save huge costs for new mold opening and shorten product R&D cycle significantly, accelerating project delivery for IoT solutions.

2.5 Excellent Maintainability Reduces Fulllifecycle Operating Cost

Total cost of ownership is a key consideration for largescale IoT deployment projects, and this conversion box is optimized for lowcost maintenance. External lightpipe status display cuts down the frequency of opening enclosure shell. When internal gateway modules need upgrade or replacement, technicians can detach the upper box body without removing the prefixed base and laid field cables. This greatly simplifies component replacement work.

All adopted interfaces follow widelyaccepted industry standards, including standard antenna thread and cable gland thread. Sparepart sourcing is convenient worldwide. Endusers and solution providers do not need to stock special nonstandard accessories, lowering sparepart inventory pressure for massproject operation.

2.6 Friendly for Industrial EMC Design

Industrial sites contain massive electromagnetic interference sources such as highpower motors and frequency converters. This conversion box reserves reasonable internal layout space. Designers can separate RF circuits, power circuits and field signal wiring inside the housing. It supports adding shielding materials and ground connection structures, helping finished gateway products achieve good electromagnetic compatibility performance. The solid plastic shell prevents dust accumulation and foreignobject impact, lowering hidden shortcircuit risks for internal electronic components.

Wide Application Scenarios

This multipurpose gateway conversion box acts as a mechanical housing platform for protocol conversion and wireless gateway equipment, and is widely applied across multiple vertical industries.

3.1 Factory Automation & Industrial IoT

In manufacturing workshops, this conversion box accommodates data acquisition gateway modules to collect data from productionline sensors, inverters and field instruments. Mounted on workshop walls or auxiliary electrical cabinets, it completes protocol conversion and wireless data transmission to upperlevel factory management systems. Four lightpipes help engineers quickly judge device status during routine patrols. External antenna improves wireless stability in metalstructure factory buildings. It is suitable for discrete production workshops, packaging lines and oldfactory intelligent retrofitting projects.

3.2 Smart Building and Energy Management

For office buildings, commercial complexes and campus facilities, this conversion box can be deployed in equipment rooms, corridor electrical junction boxes and basement facility zones. Embedded gateway units collect data of airconditioning equipment, lighting control modules and power meters, realizing protocol conversion and energyconsumption data uploading to BMS (Building Management System). Maintenance staff can check running status via lightpipes without opening cabinets. The durable housing adapts to temperature fluctuation inside building equipment rooms.

3.3 Distributed NewEnergy Monitoring

At distributed photovoltaic stations, smallscale windpower monitoring points and energystorage auxiliary monitoring sites, this conversion box serves as fieldside gateway enclosure. It collects inverter operating data and environmental sensor information, and uploads data wirelessly for remote monitoring. Installed under sheltered outdoor conditions, the antiaging housing material adapts to large daynight temperature differences. External antenna guarantees stable uplink for locations without wired network resources.

3.4 Smart City Public Facilities

This conversion box fits smart streetlight auxiliary control units, park environmental monitoring nodes and parkinglot sensing gateway boxes. It processes sensor signals and transmits data to municipal IoT platforms. Lightpipe status indication brings convenience for municipal maintenance teams. External antenna supports reliable wireless networking for numerous scattered field nodes. Typical use cases include community facility upgrading and urban park intelligent monitoring projects.

3.5 Smart Agriculture IoT

In greenhouses and farmside monitoring sites, this conversion box holds wireless gateway modules for collecting soil sensors, temperaturehumidity sensors and irrigationequipment status data. When matched with suitable cable glands, it can work under highhumidity greenhouse environments. External antenna expands wireless coverage for wide farmland areas, supporting remote environmental monitoring and automatic irrigation linkage control.

3.6 Custom Hardware Solution for System Integrators

IoT system integrators and hardware developers can select this standardized conversion box as readymade mechanical housing. Instead of longcycle and highcost custom mold development, teams can integrate selfdeveloped gateway PCBs inside this enclosure to launch finished IoT gateway products rapidly. It is ideal for smallbatch and mediumbatch customized gateway projects.

FAQ

Q1: Does this Gateway Conversion Box contain gateway PCB, antenna and cable glands? A1: This product is a mechanical housing assembly, consisting of box body, mounting base and four lightpipe components. Internal electronic circuit board, external antenna and cable glands are not included. Customers shall develop or purchase gateway modules, antennas and cable gland accessories separately according to project requirements. All reserved interfaces follow industrygeneral specifications for easy accessory matching.

Q2: What wireless frequency bands does the antenna port support? A2: The metal antenna stud is a mechanical reserved interface. Supported frequency bands depend on your embedded gateway PCB. Mechanically it is compatible with external antennas for 2.4 GHz, LoRa, SubGHz and other common IoT ISM bands. Please verify RF performance of your internal circuit when selecting external antennas.

Q3: What is the ingress protection rating of this conversion box? A3: The housing itself provides dustresistant mechanical structure. Actual IP rating of finished equipment depends on selected cable glands, sealing accessories and assembly quality. Choose cable glands matching cable outer diameter and complete sealing assembly properly. This product is recommended for indoor or sheltered outdoor use. Do not expose it to direct continuous rain without extra protective measures.

Q4: Can I change the positions of four lightpipes? A4: The positions of four lightpipes are fixed by original mold design on the top panel. If your PCB LED layout does not match lightpipe positions, you need to adjust PCB component layout. For largevolume orders, we can provide custom mold modification service. For smallbatch orders, adjusting PCB layout is more costeffective.

Q5: What accessories fit the cable gland openings? A5: Two cable entry openings adopt standard industrial thread specifications. Please select corresponding standard cable glands according to thread size and actual cable outer diameter. Mismatched cable glands will lead to poor sealing and cable strainrelief failure.

Q6: Can this conversion box be installed inside industrial electrical cabinets? A6: Yes. Thanks to splittype mountingbase design, this box can be fixed on cabinet backplate or cabinet inner wall. Please confirm cabinet inner installation space and reserve heatdissipation space for internal gateway modules.

Q7: What is the production leadtime for bulk orders? A7: Standard model orders follow regular production cycle. If you require custom modification such as housing color change, lightpipe quantity adjustment or thread dimension change, leadtime will be determined by mold adjustment and production schedule. Please send detailed technical requirements to our sales team for formal quotation and leadtime confirmation.

Q8: Can I get product samples for testing? A8: Sample service is available for customer evaluation and prototype testing. Customers need to bear sample cost and freight. After sample validation, formal massproduction order can be arranged. Please contact our sales department for sample application.
