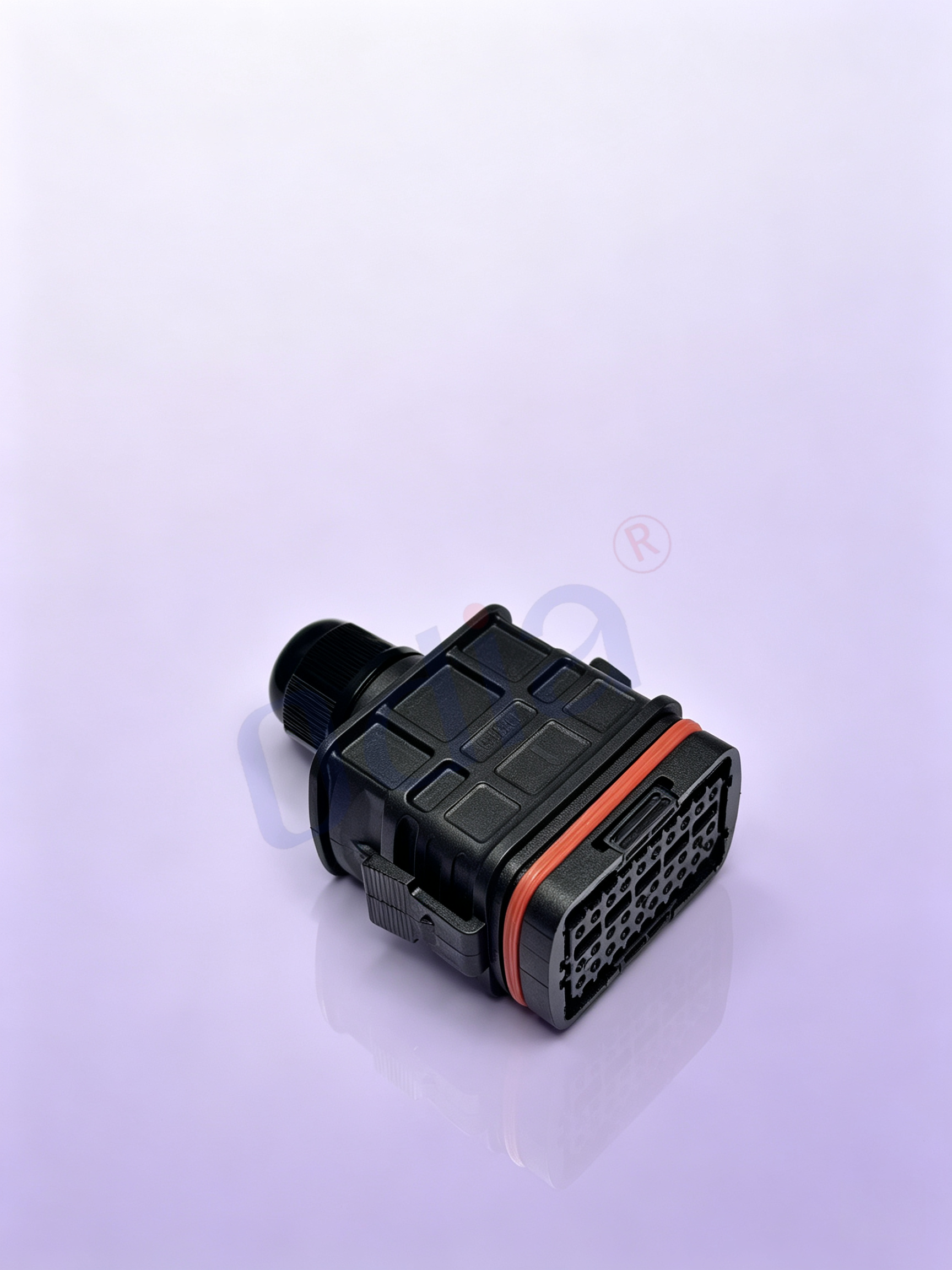

Ailo 3×10P Female Socket Waterproof Connector

This section lists the standardized technical parameters of Ailo 3×10P female socket, covering mechanical structure, electrical performance, environmental adaptability and material attributes, fully complying with international industrial electrical standards and new energy equipment application specifications.

The Ailo 3×10P female socket is professionally optimized for the structural characteristics and operating environment of energy storage equipment, with multiple competitive advantages in structural design, electrical performance and environmental adaptability compared with ordinary universal connectors.

First of all, the standardized 3×10P multi-row pin layout achieves high-density and orderly wiring. The three-row ten-pin structural design makes full use of the internal space of the inverter cabinet, realizing integrated transmission of multiple signal circuits, effectively avoiding circuit confusion and wiring redundancy caused by scattered connectors. The built-in foolproof polarization structure completely eliminates the risk of reverse insertion and mis-wiring during on-site installation, preventing equipment circuit damage and signal failure caused by human operation errors, greatly improving the safety and standardization of field construction.

Secondly, it adopts high-precision brass female contact terminals with selective plating treatment. The tin-plated version provides cost-effective and stable conduction for conventional signal circuits, while the gold-plated option features excellent oxidation resistance and low contact resistance, ensuring distortion-free and loss-free transmission of weak current signals for a long time. The ultra-low contact resistance effectively avoids heat generation, signal delay and data loss caused by poor contact, and the high insulation resistance can effectively isolate circuit interference, guaranteeing the stable operation of the entire energy storage system signal loop.

In terms of environmental protection and durability, the reinforced flame-retardant plastic housing has outstanding mechanical strength and weather resistance. It can resist long-term ultraviolet radiation, temperature cycle changes and slight mechanical impact in outdoor open-air environments, and will not crack, deform or age rapidly. The integrated silicone sealing gasket forms a fully closed protective barrier after complete mating, reaching IP67 industrial waterproof and dustproof level, which can effectively block rainwater, dew, dust, salt fog and humid air from invading the internal contact area, adapting to harsh working conditions such as coastal high humidity, outdoor wind and rain exposure, and industrial workshop dust accumulation.

In terms of on-site application and maintenance, this female socket supports flexible field assembly, requiring only conventional wiring tools to complete cable stripping, terminal crimping and overall assembly, without relying on factory prefabricated wiring harnesses. It greatly improves the flexibility of equipment maintenance, fault replacement and project renovation, and shortens the on-site construction cycle. In addition, the product has excellent anti-vibration performance, which can resist the continuous vibration generated by inverter fans and cabinet operation, avoiding intermittent signal disconnection and loose contact faults that are common in ordinary connectors.

Strict quality control is implemented throughout the production process. From raw material incoming inspection, precision injection molding, contact terminal screening to finished product aging testing and sampling inspection, every link complies with industrial quality standards. The product has low failure rate and long service life, and supports batch stable supply, which can meet the long-term matching and replacement needs of large-scale energy storage projects.

The Ailo 3×10P female socket is highly targeted for new energy storage equipment and is widely used in multiple professional scenarios such as household energy storage, commercial energy storage, photovoltaic energy storage integration and industrial energy storage supporting systems.

1. Ailo Special Energy Storage Inverter System

As a dedicated matching female socket for Ailo series energy storage inverters, it undertakes the core signal transmission work between the inverter main unit, battery pack management system and remote monitoring module, ensuring real-time and accurate transmission of equipment operating parameters, fault feedback data and control signals, and maintaining the stable and efficient operation of the inverter system.

2. Distributed Photovoltaic Energy Storage Project

Suitable for signal wiring of household and small and medium-sized commercial distributed PV energy storage stations. It adapts to outdoor complex environments with large temperature differences, wind and rain erosion and dust accumulation, providing reliable connection guarantee for long-term outdoor operation of energy storage equipment.

3. PV-Storage Integrated Cabinet Equipment

Applied to internal signal interconnection of intelligent photovoltaic energy storage all-in-one cabinets, realizing real-time collection, data interaction and remote monitoring linkage of cabinet operating status, helping intelligent management and efficient scheduling of new energy power generation and energy storage systems.

4. Industrial Energy Storage & Microgrid System

Used for signal connection of industrial energy storage cabinets and microgrid supporting equipment. Its vibration resistance, dust resistance and moisture resistance can adapt to continuous operating vibration and humid and dusty industrial workshop environments, ensuring long-term stable operation of industrial energy storage systems.

5. Equipment After-sales Maintenance & Renovation

As a standard replacement accessory for Ailo energy storage equipment, it is widely used for on-site fault maintenance, old equipment upgrading and wiring harness renovation of completed energy storage projects, providing convenient and reliable connection solutions for after-sales service engineers.

6. Custom New Energy Supporting Equipment

Support customized pin definition, wiring harness specification and environmental adaptation upgrades, which can be applied to special new energy supporting equipment and customized energy storage system projects to meet personalized connection needs of different engineering scenarios.

Q1: Is the Ailo 3×10P female socket fully compatible with original Ailo inverter interfaces?

A: This product is developed and produced in strict accordance with the original equipment interface standards. The pin layout, structural size, foolproof position and electrical parameters are completely matched with the original Ailo energy storage inverter interface, realizing seamless compatibility and interchangeability. It is a dedicated replacement and matching accessory for Ailo equipment.

Q2: What is the actual application effect of its IP67 waterproof grade?

A: The IP67 protection grade is effective when the socket and plug are completely mated and locked. It can effectively prevent dust invasion and short-term water splashing and rain erosion, suitable for outdoor cabinet semi-open installation and humid industrial environment. It is not applicable to long-term deep water immersion scenarios. Regular cleaning of the sealing gasket is recommended to maintain stable waterproof performance.

Q3: Does on-site assembly require professional special tools and technical support?

A: The product is designed for convenient field assembly. On-site wiring only requires common hand tools such as cable strippers and crimping pliers, without special professional equipment. Operators only need to follow the official assembly manual to complete standard wiring and installation, and we can provide professional technical guidance for complex construction scenarios.

Q4: What environmental conditions can this female socket withstand?

A: The standard operating temperature range is -40℃ to +85℃, which can adapt to most outdoor low-temperature and high-temperature working environments. The housing has UV resistance and anti-aging properties, which can resist long-term sunlight exposure and temperature cycle changes. For extreme environments such as strong salt fog and high corrosion, we can provide customized enhanced versions.

Q5: Can customized services such as pre-wired harness and pin definition adjustment be provided?

A: We support comprehensive personalized customization services, including contact plating type adjustment, special cable diameter matching, customized wiring harness length, non-standard pin definition and finished pre-terminated harness supply. Customers can provide project parameter requirements, and our engineering team will provide targeted solution design and quotation.

Q6: What daily maintenance points need attention during use?

A: Avoid over-current operation beyond the rated parameter range. Keep the sealing gasket and contact surface clean before mating to prevent particle impurities from affecting sealing and conduction effects. Ensure complete locking after plugging. Regularly check the aging degree of the sealing component during long-term outdoor use, and replace accessories in time if damage or aging occurs.

For customers who need to obtain detailed dimensional drawings, official product specification sheets, sample testing evaluations, batch order quotations and customized solution services of Ailo 3×10P female socket connectors, please feel free to contact our professional sales and technical engineering team.

We provide one-stop full-cycle services including technical consultation, sample delivery, product customization, mass production supply and after-sales technical support. With years of in-depth experience in the field of new energy storage connection solutions, our team can accurately match the most suitable connector products and wiring schemes according to your project application environment, equipment parameter requirements, installation space constraints and project budget.
