4Piece 10Pin Circular Aviation Connector Conversion Box with Four LightPipes

Description

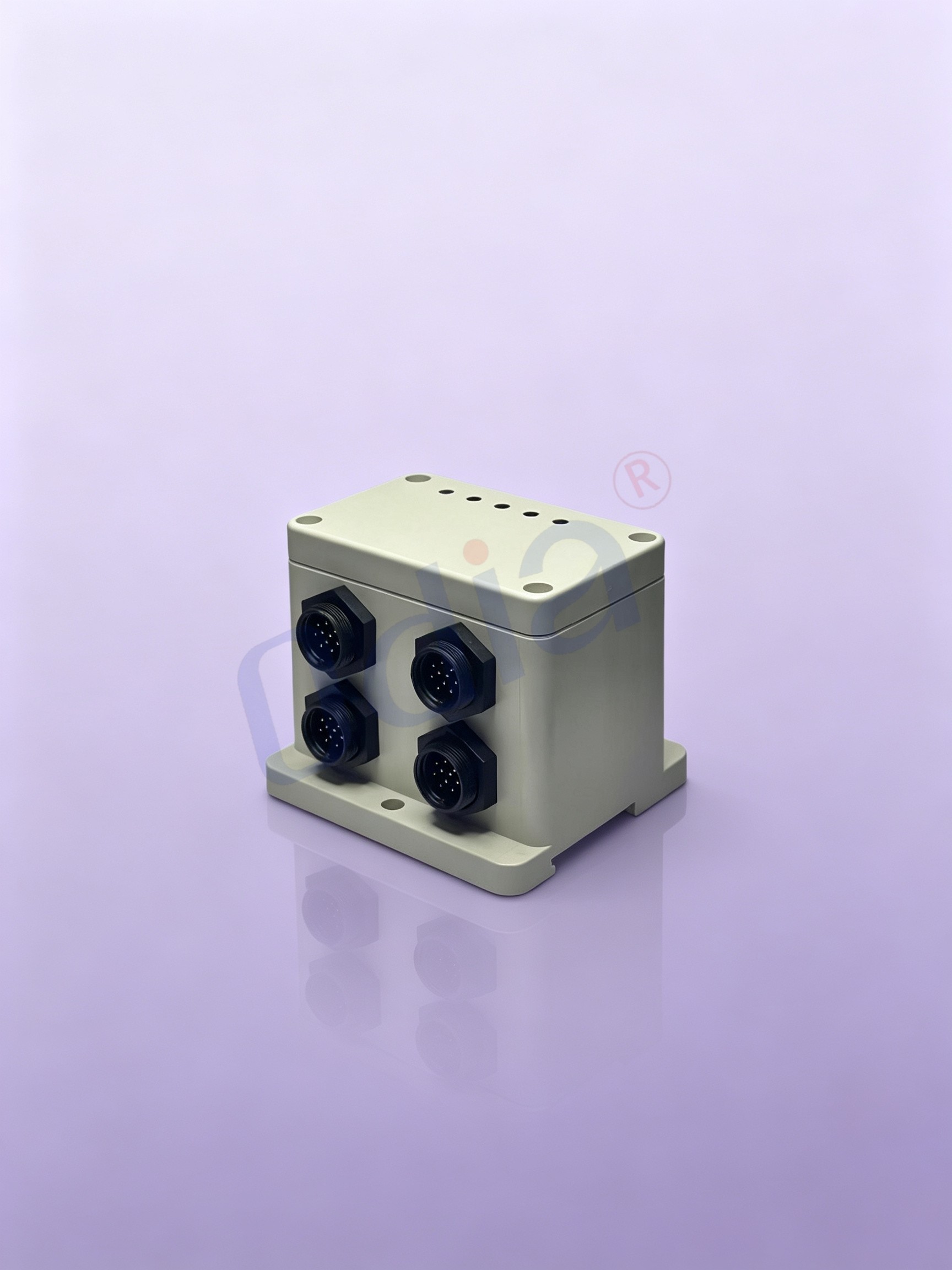

This 4Piece 10Pin Circular Aviation Connector Conversion Box is a heavyduty industrial signal conversion enclosure developed for field data acquisition, multichannel signal interconnection and IoT gateway equipment. Equipped with four premounted 10pin circular aviation connectors and four topmounted independent lightpipes for equipment status indication, this housing assembly comes with an integrated fixed mounting base for stable field installation. It acts as a complete mechanical carrier for userbuilt gateway circuit boards, multichannel signal processing modules and protocol conversion units.

Manufactured from highgrade modified PC engineering plastic, this conversion box delivers excellent impact resistance, UVresistance and antiaging performance, suitable for indoor industrial sites and sheltered outdoor working environments. Four 10pin aviation connectors realize multichannel input and output of power, analog and digital signals for field sensors and actuators. Four topside lightpipes enable external visual status monitoring without opening the enclosure shell. The splittype structural design greatly simplifies internal PCB assembly, onsite wiring and laterstage field maintenance.

System integrators and hardware developers can embed selfdeveloped or commercialofftheshelf electronic modules inside the enclosure to complete signal aggregation and protocol conversion. This standardized housing avoids highcost custom mold investment, shortens product research and development cycles, and accelerates project delivery. It is widely applied in factory automation, newenergy monitoring, smart transportation, agricultural IoT and outdoor field sensing projects.

Specifications & Parameters

1.1 Mechanical Specifications

1.2 Environmental Specifications

1.3 Interface Description

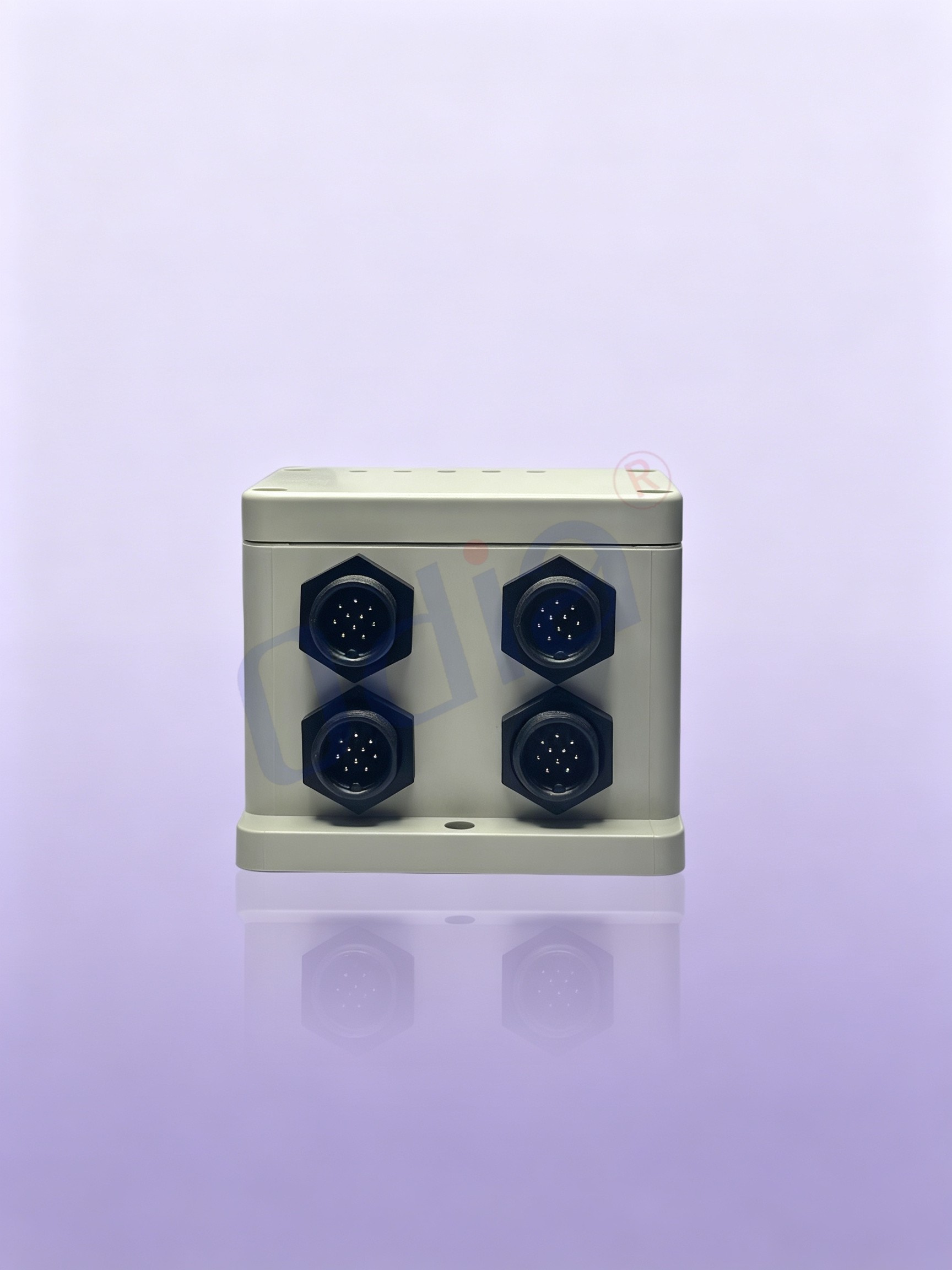

• Four 10Pin Circular Aviation Connectors: Four factorypreassembled 10core aviation connectors are arranged on the front panel. The industrial locking structure provides antiloosening performance against mechanical vibration, cable pulling and shaking in workshop and outdoor sites. Multiple aviation ports support simultaneous access of multigroup field devices, transmitting lowvoltage power, analog quantity and digital switching signals between fieldside equipment and internal conversion circuit boards. Premounted aviation plugs save customers component procurement and assembly work.
• Four Independent LightPipes: Four separated lightpipe units are distributed on the top of enclosure. They transfer LED indicator light from internal circuit board to outside. Each lightpipe can correspond to one equipment state: power supply status, system running, data transmission and fault alarm. Independent opticalisolation design prevents light crosstalk and light leakage. Maintenance personnel can check device working status without opening the box shell.
• Internal Installation Space: Spacious inner cavity and multiple integrated screw fixing bosses are reserved inside. Customers can fix gateway boards, power supply units and signal processing modules without secondary machining on the housing shell.
• EMC Grounding Compatibility: Reserved space for internal grounding wiring, convenient for users to complete electromagnetic antiinterference design for industrial finished equipment.

1.4 Compliance Reference

This mechanical housing is designed referring to IEC 60529 and IEC 610101 industrial control standards. Final certification of complete finished equipment shall be carried out together with customerintegrated electronic modules according to endproject requirements. Actual ingress protection performance depends on matched aviation connectors, sealing accessories and onsite assembly quality.

2. Product Features and Core Advantages

2.1 Four 10Pin Aviation Connectors for MultiChannel Field Signal Access

The biggest highlight of this conversion box is four integrated 10pin circular aviation connectors. For industrial field projects requiring access to multiple sensors or actuators, multiaviationport design can connect four groups of field equipment at the same time within one single housing unit. It realizes signal aggregation in a compact enclosure, avoiding deployment of multiple separate junction boxes on site, saving installation space and construction cost.

Industrialgrade locking aviation connectors feature vibrationproof and pullresistant performance. Compared with traditional cablegland wiring, field operators only need to plug and lock matching aviation cables, no need to strip and crimp multicore wires one by one. It greatly reduces onsite wiring time and humancaused wiring errors. Preinstallation of aviation connectors reduces customer’s production assembly steps and improves prototype debugging and massproduction efficiency. It supports mixed transmission of power and multitype signals, and brings stable connection performance for complex industrial field conditions.

2.2 Four Independent LightPipes for Intuitive External Status Diagnosis

Four dedicated topmounted lightpipes realize visual external status feedback. In actual deployment, conversion boxes are usually installed on walls, equipment supports or inside electrical cabinets. Frequent disassembly of the housing shell for status inspection will bring hidden risks such as dust intrusion and loose internal wiring.

Each lightpipe corresponds to an important working state: power supply normal, system operation, data transmission and fault warning. Opticalisolation structure eliminates light crosstalk between different indicators, making light display clear and distinguishable. During routine patrol, maintenance staff can quickly judge equipment running status and locate abnormal units, shorten troubleshooting time and reduce fieldservice workload. Different from simple drilledhole LED solution, integrated lightpipe structure provides physical protection for internal LED components against dust, impact and moisture, extending service life of finished equipment.

2.3 SplitType Structure Optimizes OnSite Installation and Later Maintenance

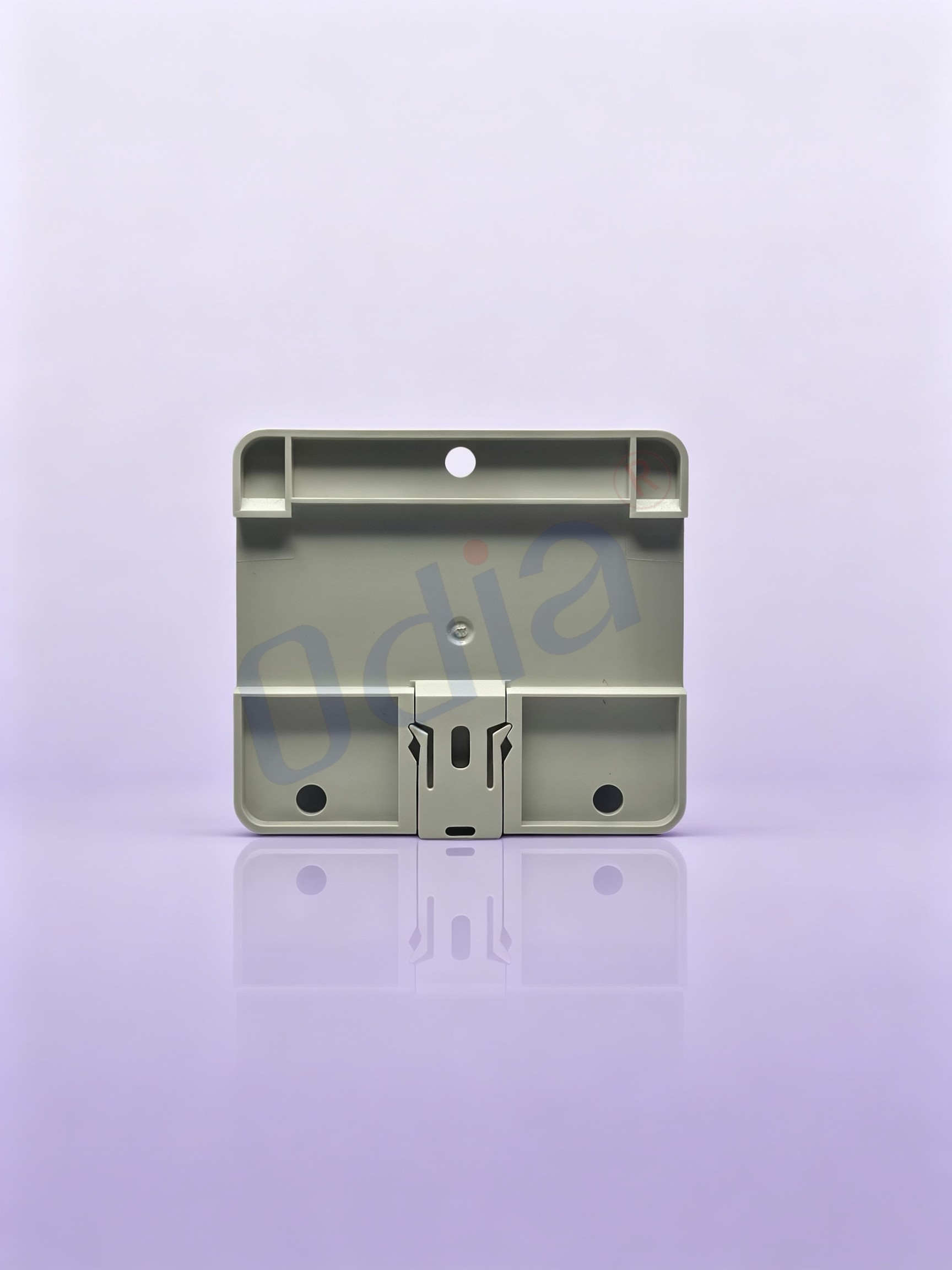

Adopting splittype design of detachable mounting base and main box body, this conversion box brings great convenience for onsite construction work. Operators can first fix the mounting base to wall, cabinet panel or equipment bracket. After completing plugin of aviation cables and internal PCB assembly, lock the main box onto the prefixed base. This installation sequence avoids dragging the whole enclosure during wiring operation.

When internal signal conversion modules need upgrading, replacement or fault repair, technicians can detach the upper box body directly, without removing the mounting base and preconnected field aviation cables. It avoids repeated plugin and unplugout of multichannel field signal cables, simplifies maintenance procedures and reduces risk of signalline connection failure. Highquality modified PC material offers outstanding impactresistance and antiaging property, adapting to temperature changes of indoor workshops and sheltered outdoor environments.

2.4 Universal Internal Cavity Reduces Custom Development Cost for Integrators

This conversion box serves as a standardized universal mechanical platform, not limited to one specific circuit board. The large inner space and preformed PCB mounting bosses support embedding of various modules: multichannel signal acquisition board, wiredtowireless gateway module, protocol conversion unit and edge processing submodule.

IoT hardware developers and system integrators can install selfdeveloped or mainstream commercial circuit boards inside. Users only need to align PCB LEDs with top lightpipes and connect signal circuits to four 10pin aviation connectors. For most smallbatch and mediumbatch projects, expensive new mold opening is not required. It effectively cuts hardware researchanddevelopment investment and shortens product launch cycle for IoT solution projects.

2.5 Optimized TotalCostofOwnership for LargeScale Project Deployment

For mass IoT deployment projects, fulllifecycle operating cost is an important evaluation dimension. This conversion box is optimized for lowcost operation. External lightpipe status indication reduces the frequency of opening enclosure shell. Splitbase maintenance structure simplifies component replacement work. Aviation connectors adopt widelyused industrial specifications, sparepart procurement is convenient. Endusers and solution providers do not need to stock special nonstandard accessories, lowering inventory pressure for masssite operation. Durable PC housing guarantees long service life in field environments and reduces equipment replacement frequency.

2.6 Friendly Structural Condition for Industrial EMC Design

Industrial sites contain massive electromagnetic interference sources such as highpower motors and frequency converters. Reasonable internal space layout supports customers to separate power circuits, signal circuits, helping designers implement EMC antiinterference measures. Solid housing shell provides physical protection for internal electronics, prevents dust accumulation and foreignobject impact, and reduces hidden shortcircuit risks.

Wide Application Scenarios

As a multiport aviationplug signal conversion housing platform, this product is widely used in multiple industrial vertical fields.

3.1 Factory Automation & MultiChannel Industrial Data Acquisition

In manufacturing workshops, this conversion box accommodates multichannel acquisition gateway modules. Through four 10pin aviation connectors, it collects signals from multiple onsite sensors and actuators simultaneously. Mounted on workshop walls or equipment supports, it completes signal aggregation and protocol conversion, uploading data to upperlevel factory management systems. Four lightpipes help engineers quickly check equipment status during patrols. It applies to production lines, packaging equipment and intelligent upgrading projects of legacy factories.

3.2 Distributed NewEnergy Monitoring System

For distributed photovoltaic stations, small windenergy sites and energystorage monitoring points, this conversion box works as fieldside signal conversion housing. It collects data from multiple inverters and environmental sensors via multiaviation ports. Deployed under sheltered outdoor conditions, antiaging housing material adapts to large daynight temperature differences. It is suitable for scattered newenergy monitoring nodes.

3.3 Smart Transportation & RoadSide MultiPoint Sensing

At roadside monitoring points, tunnel auxiliary equipment and parkinglot sensing nodes, this conversion box connects multiple onsite detection sensors through four 10pin aviation plugs. It realizes signal aggregation and data transmission to municipal monitoring platforms. Vibrationresistant aviation connectors adapt to slight vibration of roadside facilities. Lightpipe status indication facilitates daily inspection for maintenance teams.

3.4 Smart Agriculture & Greenhouse MultiSensor Monitoring

In greenhouses and farmside monitoring sites, this conversion box integrates signal acquisition gateway modules. It connects soil sensors, temperaturehumidity detectors and irrigation control equipment via multiaviation interfaces. With proper sealing measures, it adapts to highhumidity greenhouse conditions, supporting multipoint environmental monitoring and automatic irrigation linkage control.

3.5 Outdoor Smart Public Facilities

For smartcity peripheral facilities such as park monitoring nodes and community sensing equipment, this conversion box processes multichannel field sensor signals. Aviation connectors deliver stable longterm signal connection for outdoor deployment.

3.6 Custom Hardware Solution for System Integrators

IoT system integrators and hardware developers can select this offtheshelf conversion box as readymade mechanical housing. Instead of highcost and longcycle custom mold development, teams can integrate selfdesigned circuit boards inside to launch finished signalconversion products rapidly. It fits smallbatch and mediumbatch customized industrial IoT projects.
