3-Core Circular Waterproof Connector to RJ45 8P Male Plug Cable for Sanjing Inverter, Customizable Cable Length

Important Note: The IP67 waterproof rating is only valid for the 3-core circular screw-lock connector when fully screwed and properly mated with its matching counterpart. The RJ45 8P crystal-head male end is non-waterproof and must be installed inside cabinet, junction box or sealed housing. Do not expose the RJ45 plug to outdoor rain, dew or splashing water. This cable is specially developed for Sanjing inverter communication and data signal transmission. It is designed for low-voltage signal and auxiliary power circuit; do not apply for high-current power loads exceeding 3 A per-core rating. Custom cable lengths are supported; non-standard special lengths may be subject to minimum-order quantity requirements. Wire sequence and pin assignment follow Sanjing inverter communication definition, please verify pin mapping before installation.

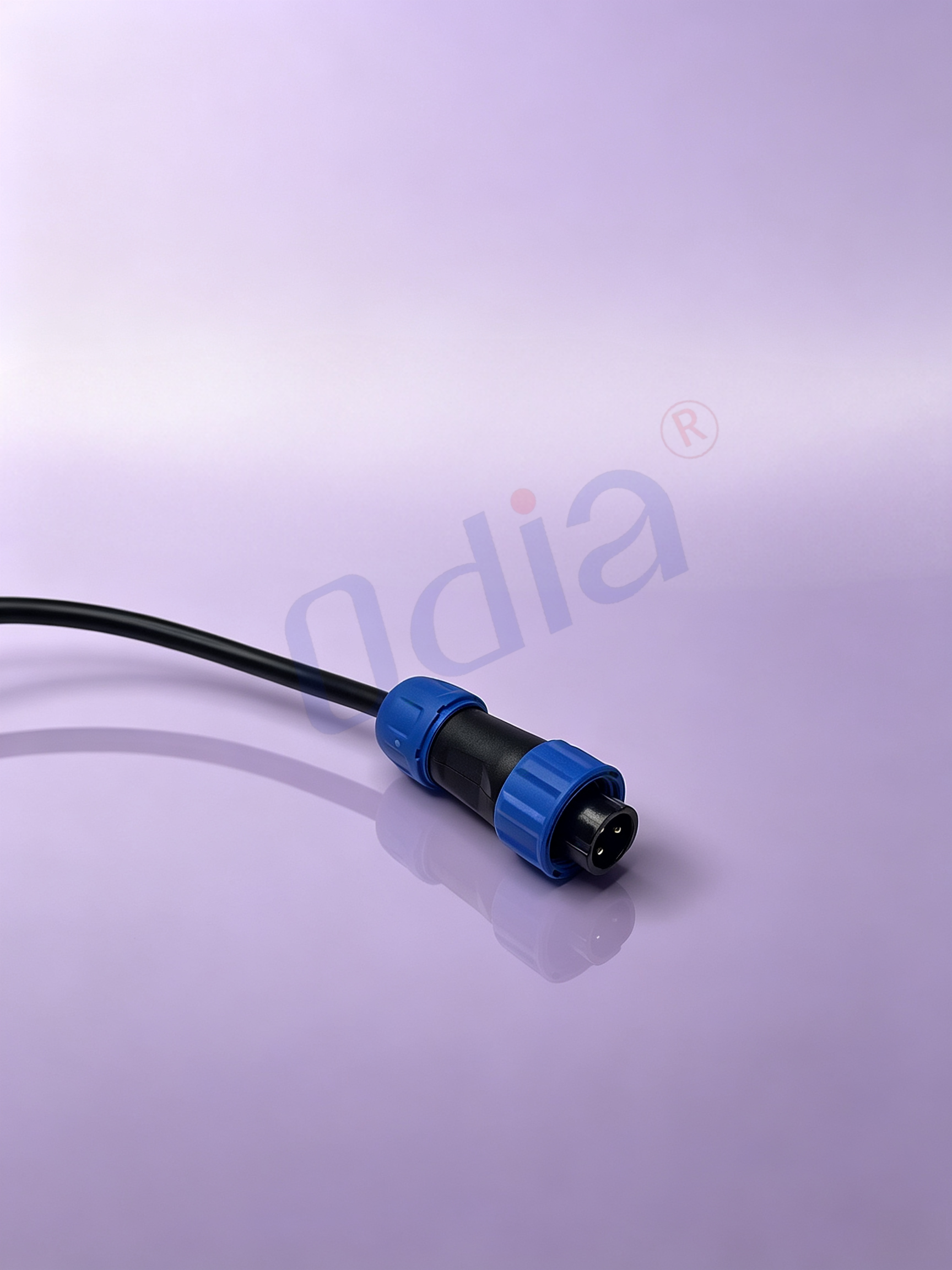

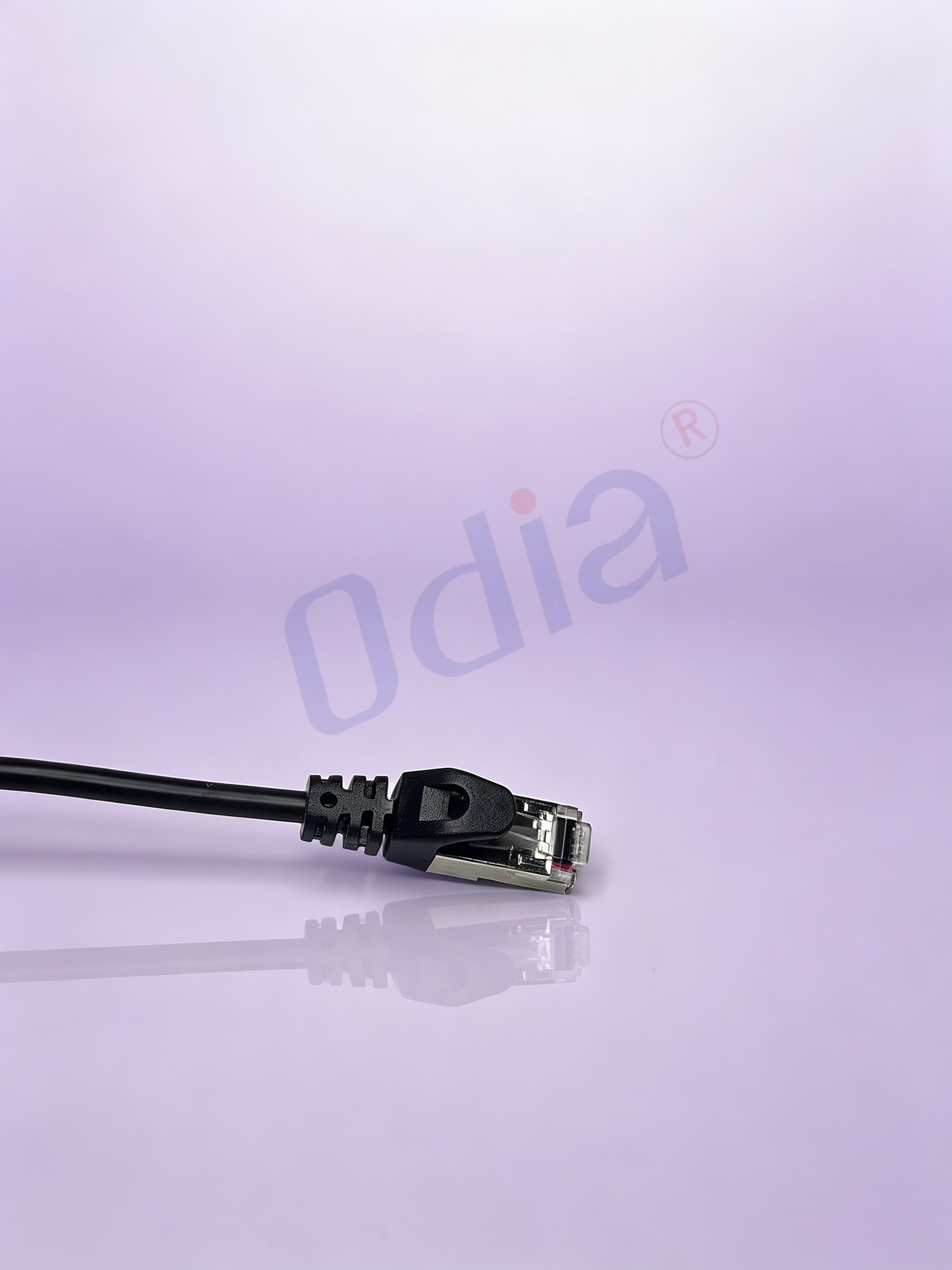

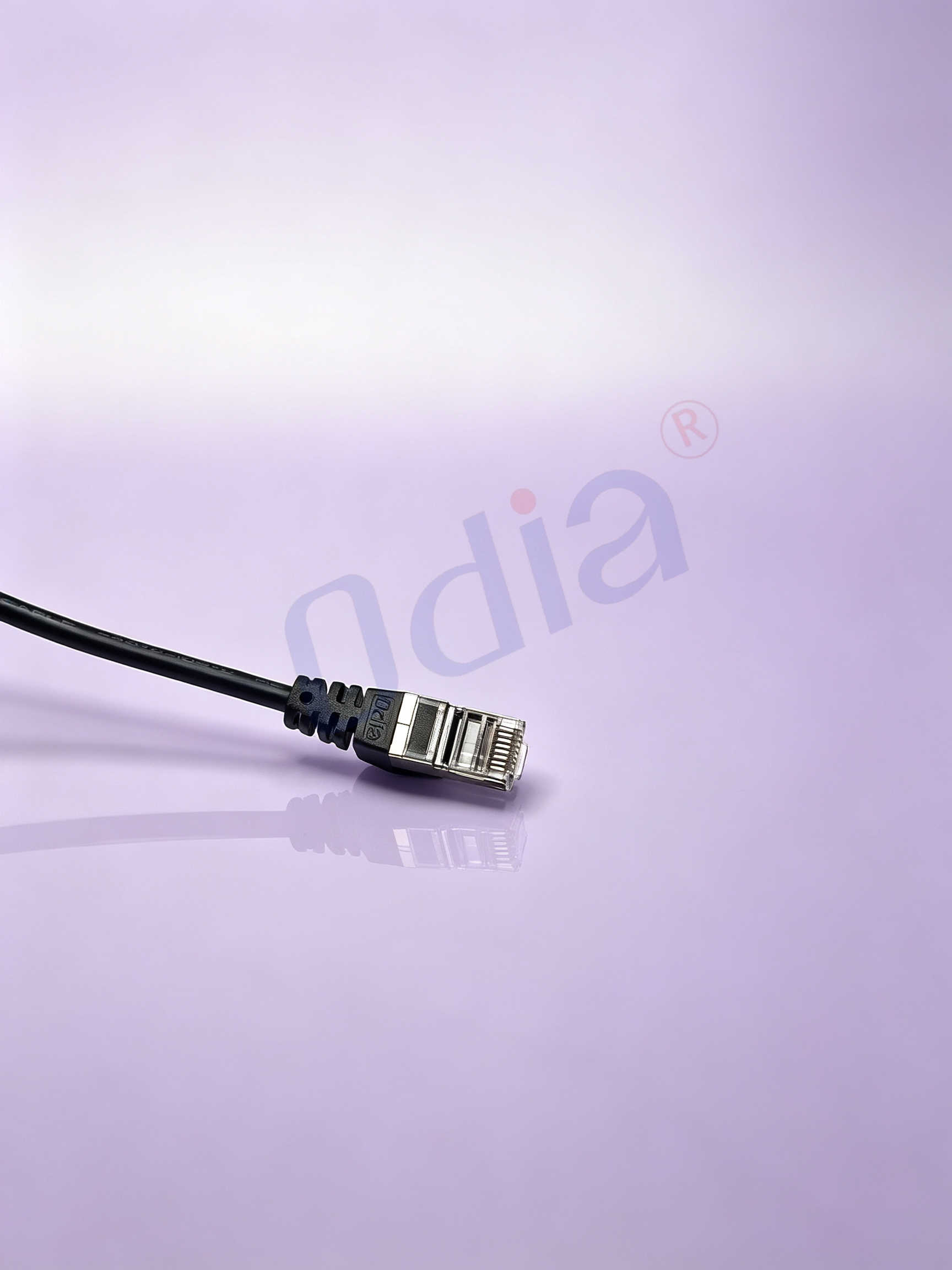

This finished hybrid cable assembly features one-end 3-core screw-lock circular waterproof connector and the other-end shielded RJ45 8P male crystal plug, tailor-made for Sanjing solar inverter data communication and monitoring connection. It serves as a dedicated transition harness between outdoor waterproof equipment interface and standard RJ45 network port inside cabinet. Compared with customer self-assembled discrete connectors and bulk cable, this factory pre-terminated cable eliminates on-site cutting, stripping, crimping and crystal-head termination work. It solves common field-application pain points such as poor waterproof performance caused by improper manual assembly, unstable network communication signal, crystal-head crimp failure, inconsistent wire sequence, high rework rate and long on-site processing cycles in photovoltaic power-station installation.

First of all, integrated factory pre-termination ensures reliable pin definition and stable communication performance. Both ends of this harness are fully assembled and tested inside standardized production workshop. The circular waterproof connector is assembled with precise crimping; the RJ45 8P male crystal head is machine-crimped strictly according to Sanjing inverter required wire sequence. Every finished cable undergoes continuity test and pin-to-pin short-circuit inspection before delivery. In photovoltaic construction sites, manual RJ45 crimping often causes wrong wire order, insufficient crimp pressure or loose inner conductors, resulting in intermittent communication, disconnection or complete signal loss between inverter and monitoring system. Using our pre-finished transition cable can avoid human errors from field manual processing, guarantee consistent signal quality for every unit, and greatly reduce after-sales communication-related failure for inverter projects.

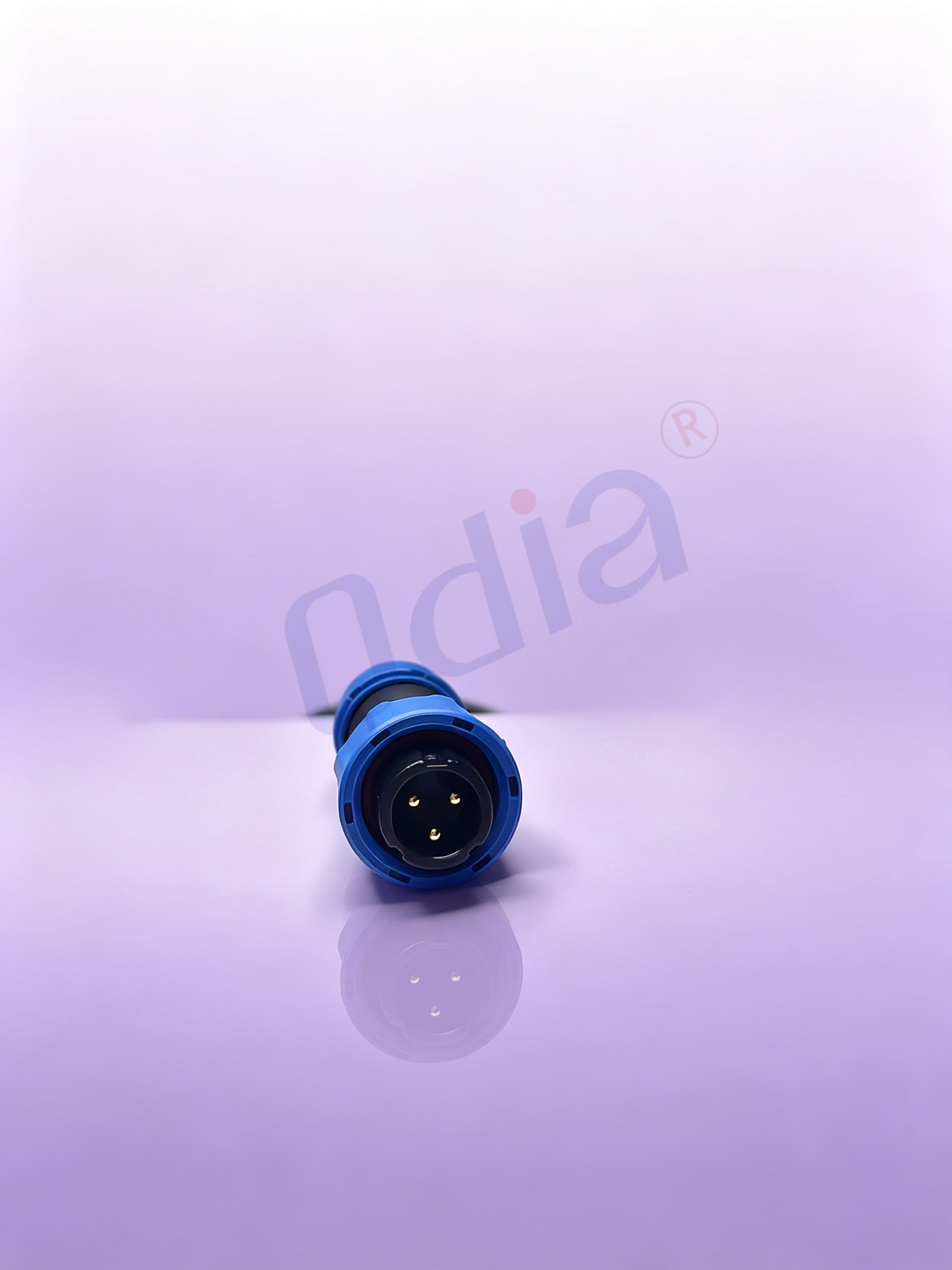

Secondly, screw-lock circular waterproof connector provides excellent outdoor environmental resistance. The 3-core circular connector adopts blue threaded locking knobs. After fully screwing-tight with the matching panel-mount socket, it achieves IP67 dust-proof and water-proof performance. It can effectively resist rain splash, dew condensation, dust, coastal salt-fog and ultraviolet aging in open-air photovoltaic power-station environment. The screw-locking mechanism delivers outstanding anti-vibration capability. Under continuous vibration generated by inverter cooling fans and site mechanical disturbance, accidental loosening of mating connector can be prevented, maintaining stable signal link for long-term inverter running. It protects the communication interface of Sanjing inverter from outdoor harsh climate erosion.

Thirdly, customizable total cable length adapts diversified site layout requirements. Standard stocked lengths cover 2 m, 3 m, 5 m, 8 m and 10 m. For special installation distances between inverter cabinet and internal network module, or between field equipment and monitoring terminal, cable overall length can be tailor-made strictly according to customer drawing and on-site measurement data. It avoids material waste from cutting over-long standard cables, and also prevents insufficient wiring length that leads to re-procurement delay. Custom service supports small-batch sample orders and large-volume mass-production for batch inverter projects.

Fourthly, high-quality cable material enhances harness service life under complex working conditions. Outer jacket is optional for PVC or PUR material. PUR jacket owns superior oil-resistance, abrasion-resistance and bending-fatigue-resistance, suitable for occasions with frequent dragging, friction and contact with greasy substance. Multi-strand flexible tinned-copper inner conductors bring good bending performance, convenient for routing inside narrow cabinet space, cable-tray laying and field bending installation. The RJ45 crystal head adopts full metal shielding shell, which suppresses external electromagnetic interference, improves anti-interference performance of communication signal inside inverter cabinet where high-power electrical components are concentrated. All raw materials comply with RoHS environmental-protection specification; halogen-free material can be supplied upon request for overseas export photovoltaic projects.

Fifthly, it shortens installation cycle and lowers comprehensive project cost for integrators and installers. When receiving this finished transition cable, field workers no longer need to carry crimping pliers, crystal heads and loose cable materials. They only need to fasten the circular waterproof connector on inverter side and plug RJ45 male head into internal network port. Complex termination procedures are removed from construction site. It reduces working hours per installation point, and eliminates quality fluctuation caused by different operator skill-levels. Please keep in mind that the RJ45 crystal-head end has no waterproof capability. It must be placed inside sealed cabinet or junction box, and cannot be exposed directly to outdoor weather, otherwise oxidation and communication fault will occur.

Core advantage summary list:

• Dedicated transition cable: 3-core screw-lock circular waterproof connector to shielded RJ45 8P male plug for Sanjing inverter
• Factory pre-terminated both ends, strictly follows Sanjing communication pin assignment, passed continuity testing
• Circular connector reaches IP67 rating after full tightening, adapts harsh outdoor photovoltaic power-station environment
• Screw-locking structure provides reliable anti-vibration performance for long-term inverter operation
• Shielded RJ45 8P male plug enhances anti-electromagnetic-interference ability for communication signal
• Total cable length fully customizable, satisfies various site wiring-distance requirements
• Optional PVC / PUR cable jacket; flexible tinned-copper conductors for easy field laying and bending
• Eliminates on-site crimping & termination work, improves installation efficiency and reduces rework risk
• RoHS-compliant raw materials, halogen-free option available for global export photovoltaic projects
• Hybrid transition harness connects outdoor waterproof equipment interface to standard RJ45 network port inside cabinet

This 3-core circular-waterproof-connector-to-RJ45-8P-male-plug cable is mainly oriented to new-energy photovoltaic industry, focusing on Sanjing inverter communication data transmission and related system integration projects.

1. Sanjing Grid-Tied Solar Inverter Communication Connection

Sanjing solar inverters adopt external waterproof 3-pin interface for data output. This transition cable is connected to inverter waterproof port on one side; RJ45 male plug is inserted into internal monitoring module or network gateway. It realizes data uploading of inverter running parameters, power generation status, fault alarm information, applicable for distributed rooftop photovoltaic and ground-mounted solar power plants.

2. Photovoltaic Power-Station Monitoring System

In large-scale PV power stations, numerous Sanjing inverters need to access centralized monitoring platform. This finished harness converts outdoor waterproof signal interface into standard RJ45 network signal, convenient for system integrator to complete signal aggregation inside collection cabinet. Pre-tested finished cable lowers on-site wiring failure rate.

3. Photovoltaic Energy-Storage Hybrid Cabinet

Solar-storage integrated cabinet equipped with Sanjing inverter uses this cable for signal transition between external equipment and internal communication unit. Shielded RJ45 end resists electromagnetic interference brought by power devices inside hybrid cabinet, guaranteeing stable data interaction.

4. Distributed Photovoltaic O&M On-Site Commissioning

Operation-and-maintenance engineers use this transition cable for field debugging and data reading of Sanjing inverters. Pre-fabricated structure avoids carrying multiple wiring tools, improves work efficiency for site inspection and troubleshooting.

5. New-Energy Equipment Cabinet Internal Wiring

System integrators deploy this harness inside complete-set new-energy control cabinet, converting waterproof field interface to standard RJ45 port. Factory pre-termination accelerates cabinet batch-assembly progress and ensures consistency of finished equipment.

6. Overseas Export Photovoltaic Project

For Sanjing-inverter-based photovoltaic export projects, RoHS-compliant and optional halogen-free versions meet international procurement requirements. Custom-length service adapts different regional installation-layout standards.

Q1: Which end is waterproof? Is the RJ45 crystal-head male plug waterproof?
A1: Only the 3-core circular screw-lock connector achieves IP67 waterproof performance after being fully screwed-tight with matching socket. The RJ45 8P crystal-head male end is non-waterproof. It must be installed inside cabinet or sealed junction box and must not be exposed to rain, splashing water or outdoor humid environment.

Q2: Does this cable follow Sanjing inverter default pin assignment? Can we modify wire sequence?
A2: Standard product is produced according to Sanjing conventional communication pin-out definition. Please confirm pin mapping before ordering. Custom wire-sequence modification is supported for bulk-order requirements.

Q3: Can I get arbitrary custom cable length? Is there any minimum-order restriction for special length?
A3: Total cable length can be customized as requested. Standard lengths such as 2m, 3m, 5m support small-batch sample delivery. Non-standard special lengths will be subject to minimum-order-quantity requirement; please confirm with our sales team.

Q4: What is rated current per core? Can it be used for high-power power supply transmission?
A4: Rated continuous current per conductor is 3 A. This cable is designed for communication signal and low-voltage auxiliary power supply only. Do not use for high-current load exceeding 3 A per core, otherwise over-heating and permanent damage may occur.

Q5: Can I use this RJ45 end for common gigabit Ethernet network communication?
A5: This is a dedicated transition harness for Sanjing inverter communication, pin-out is customized for inverter signal definition, not standard Ethernet wire sequence. It cannot be directly used for general gigabit network transmission.

Q6: What is difference between PVC and PUR jacket? Which one should I choose?
A6: PVC is cost-effective for fixed laying inside cabinet. PUR has better oil-resistance, wear-resistance and anti-bending-fatigue performance, suitable for outdoor laying, frequent dragging and mechanical-friction scenarios. Select according to your actual working environment.

Q7: The inverter communication signal is intermittent after installation, what points need to be checked?
A7: Please check below items: confirm circular waterproof connector is fully screwed-tight; verify RJ45 male plug is fully inserted into network port; check cable jacket for scratch or damage; confirm wire-sequence matches inverter requirement; inspect whether RJ45 end suffers moisture intrusion. Replace harness if physical damage occurs.

Q8: Are the mating circular female socket and RJ45 supporting accessories included in package?
A8: Package only contains this finished transition cable. Matching circular mating socket, network switches and other accessories are not included. Customers need to prepare mating parts according to project design.

Q9: Can this cable work in long-term outdoor sun-exposed condition?
A9: The circular-connector side can work outdoors after proper mating. But the RJ45 crystal-head end must be protected inside sealed housing. Do not expose RJ45 plug under direct sunlight and rain.

Q10: Is halogen-free version available for export projects?
A10: Yes. Halogen-free material can be provided upon request for overseas photovoltaic export projects, meets related international environmental-protection standards.
