2.0×4.3mm Double Row 2×10P Square Hole Female Header, SMT Type, W=6.5mm, PA6T Housing, Gold / Tin Plating over 50μ" Nickel Underlayer

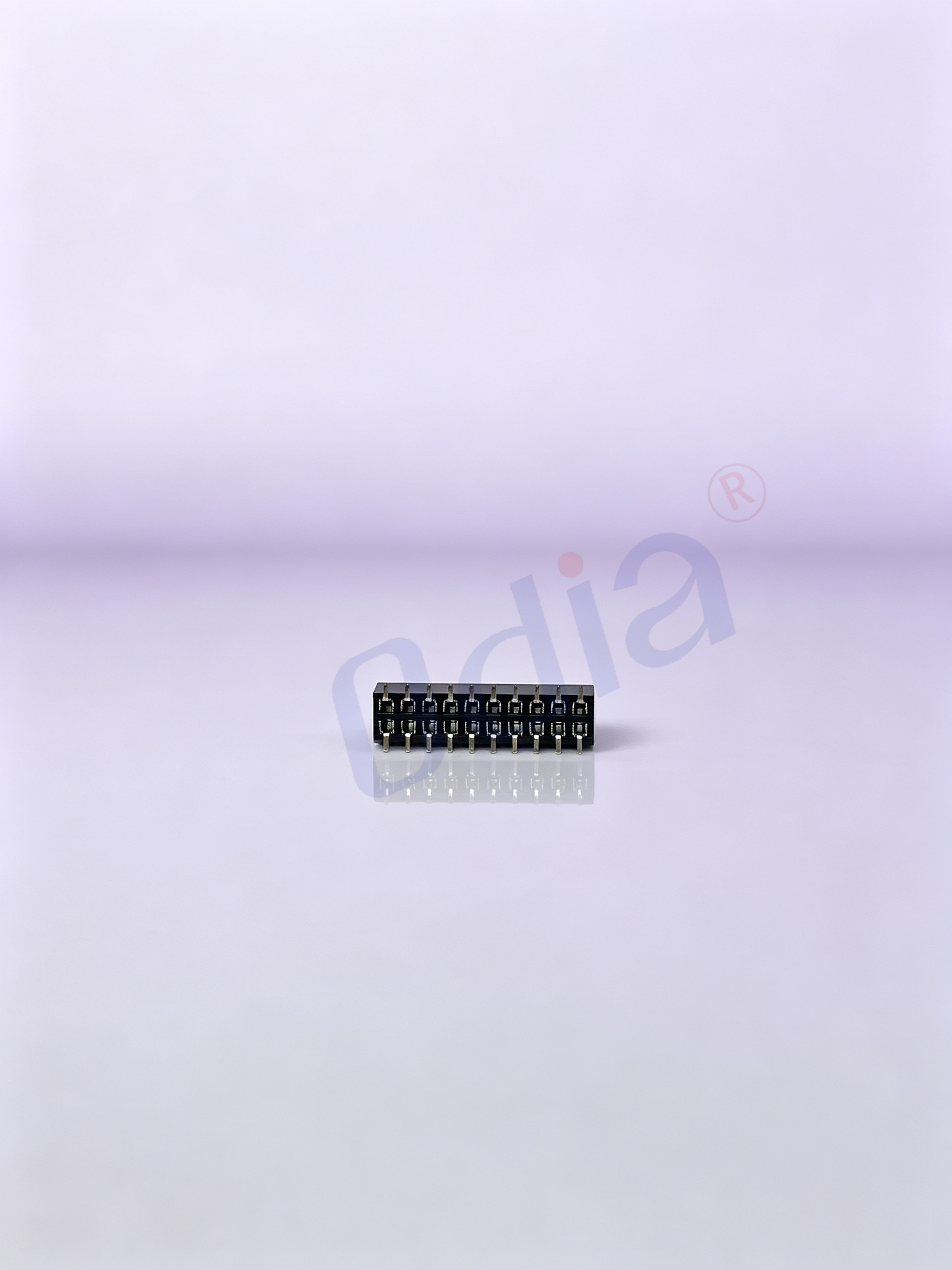

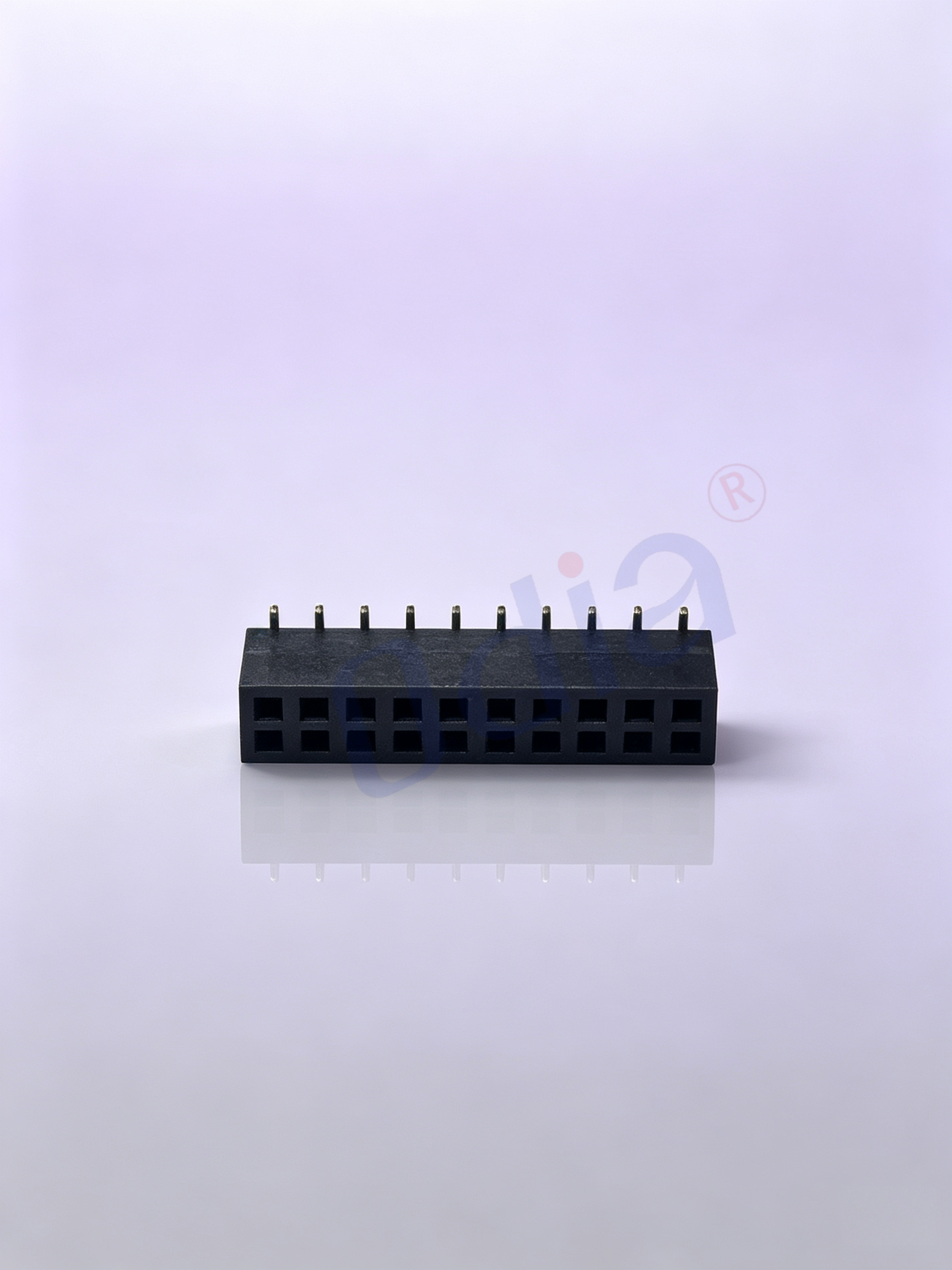

Square hole female header, SMT Type,2.0×4.3mm Double Row 2×10P,straight s.m.t type , W=6.5mm , Gold or tin over 50μ" Ni, PA6T Material. This high-precision double-row square hole female header adopts straight SMT surface mount construction, with an overall width of 6.5mm and 2.0×4.3mm pin pitch layout. It supports automatic pick-and-place by SMT mounting machines, greatly improving production assembly efficiency and saving valuable PCB layout space. The insulator housing is injection molded from premium PA6T high-temperature engineering plastic, which features excellent heat resistance, low thermal deformation and outstanding dimensional stability. It can endure the high temperature of reflow soldering without warpage, retaining accurate pin positioning after soldering. Terminals use over 50μ" nickel as the underlayer, with gold plating or tin plating available for surface finishing. The nickel underlayer effectively blocks copper diffusion and boosts corrosion resistance. Gold plating provides ultra-low and stable contact resistance for high-reliability signal transmission, while tin plating offers an economical solution for general electronic applications. Adopting square hole contact structure, this connector achieves tight mating and great vibration resistance. Widely used in industrial control boards, communication modules, smart control systems and precision measuring instruments, it delivers stable board-to-board interconnection for medium-pin-count compact electronic designs.

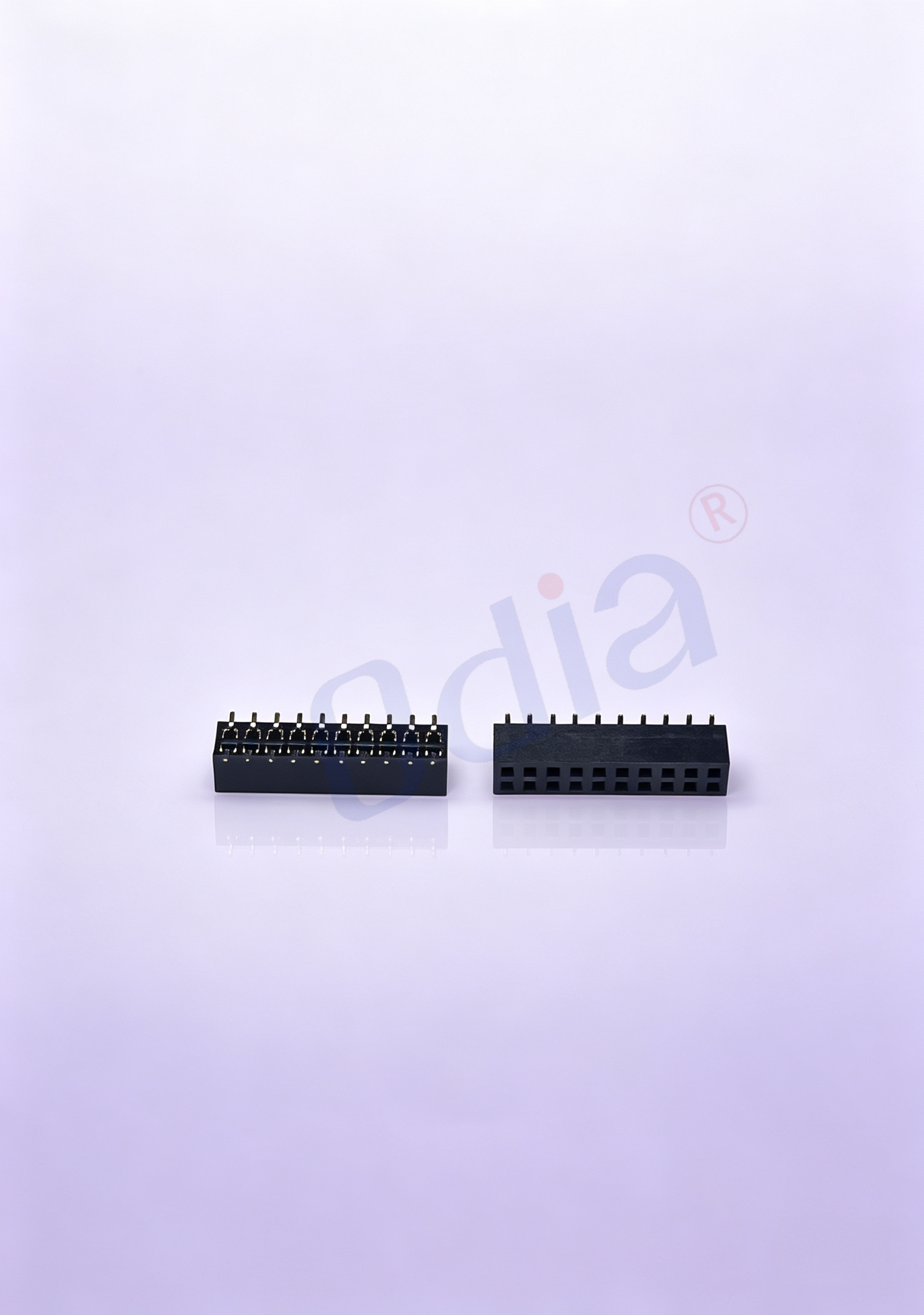

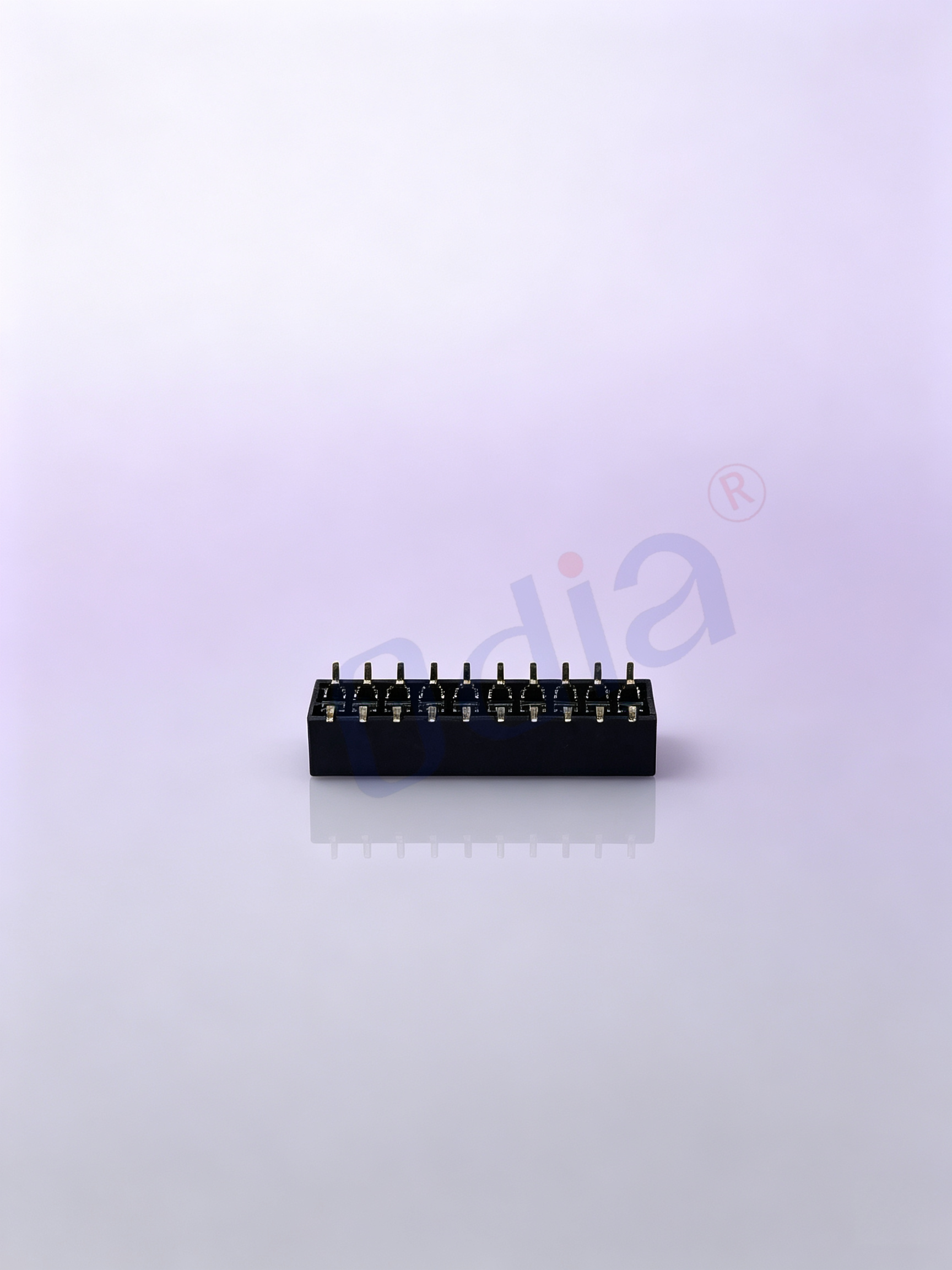

Description
Our SMT Female Header is a high-precision, surface-mount board-to-board connector engineered for modern compact electronic devices. Designed exclusively for SMT (Surface Mount Technology) mounting, this female header delivers stable electrical connection, excellent high-temperature resistance, and reliable mechanical locking performance, perfectly adapting to automated SMT production lines and high-density PCB layout requirements. Available in multiple pitch sizes, row configurations, and pin counts, our SMT female headers support customized designs to meet diverse industrial and consumer electronic application demands, serving as a core connecting component for precise circuit transmission.
Specifications & Parameters
This series of SMT female headers adopts standardized industrial design and high-quality raw materials, with complete and rigorous electrical, mechanical, and environmental performance parameters, fully compliant with international electronic industry standards and SMT reflow soldering processes. All parameters are tested and verified to ensure stable and consistent batch product performance.
Mounting Type: Surface Mount Technology (SMT), vertical surface mount, bottom contact design, suitable for automated pick-and-place and reflow soldering
| Item | Specification |
| Product Name | Square hole female header, SMT Type,2.0×4.3mm Double Row 2×10P,straight s.m.t type , W=6.5mm , Gold or tin over 50μ" Ni, PA6T Material |
| Part Number | 1470000011 |
| Pin pitch | 2.0mm; (multiple alternative pitches available, such as 1.27mm，2.54mm,3.96mm,5.08mm and 7.62mm).covering most civilian and industrial electronic connection scenarios. |
| Insulator Height | 4.3mm; (alternative sizes including 4.6 mm, 7.0 mm 8.0mm and 8.5mm are available. Custom non-standard sizes are acceptable). |
| Number of row | Double Row; (Single Row and Triple Row can be customized.) |
| Number of contacts | 2X10P ; other layouts are available as options 1X50P,2X50P,3X50P, and special pin count customization is acceptable. |
| Tail & mounting style |
straight s.m.t type, right angle dip type and Straight dip type can be customized. |
| SMT lead transverse width | 6.5mm |
| Contact plating | Gold or tin over 50μ" Ni |
| Material | PA6T |
| Current rating | 2.0AMP |
| Contact resistance | 30mΩ Max |
| Insulation resistance | 1000mΩ Min,which can effectively avoid current leakage and signal interference. |
| Withstand voltage | 600V AC/minute,ensuring safe and stable operation of the circuit. The electrical performance is stable in a wide temperature range, without virtual connection or signal attenuation. |
| Plug Life | More than 1000 times plug-in cycles, maintaining stable electrical and mechanical performance after long-term use |
| Product Height | Multiple low-profile height options, supporting ultra-thin and compact equipment design |
Product Features & Core Advantages
Our SMT female headers stand out in the electronic connector industry with superior material selection, exquisite craftsmanship and optimized structural design, solving multiple pain points of traditional connectors in SMT production and actual application, bringing significant cost and performance advantages to customers.
2.1 Professional SMT Surface Mount Design
Different from traditional DIP plug-in female headers, this product adopts pure SMT surface mount structure, which is compatible with fully automated SMT pick-and-place machines. It supports tape-and-reel packaging for mass automated production, greatly improving production efficiency and reducing manual assembly costs. The flat and standardized pad design ensures perfect fitting with PCB pads, no offset or virtual soldering during reflow soldering, and high assembly yield. The low-profile structural design saves PCB board space effectively, meeting the miniaturization and lightweight development trend of modern electronic equipment.
2.2 Excellent High-Temperature & Environmental Resistance
The insulator is made of imported high-temperature resistant engineering plastics, which will not deform, melt or crack during high-temperature reflow soldering. With UL94V-0 flame retardant performance, it effectively prevents fire hazards caused by circuit short circuits. The overall product has good moisture-proof, dust-proof and anti-aging properties, and can maintain stable working performance in harsh environments such as high humidity, low temperature and frequent temperature changes, avoiding signal interruption and equipment failure caused by environmental changes.
2.3 Stable Electrical Transmission Performance
The phosphor bronze contact pin has high elasticity and good electrical conductivity, with ultra-low contact resistance, realizing lossless transmission of power and signals. The precise pin spacing and structural size ensure accurate docking with male headers, avoiding poor contact caused by docking deviation. The standardized plating process effectively resists oxidation and corrosion, prevents contact failure caused by long-term exposure to air, and ensures long-term stable electrical connection of the product.
2.4 Superior Mechanical Stability & Vibration Resistance
The product is designed with a reinforced locking structure, which provides strong clamping force after docking, effectively preventing loose connection and disconnection caused by equipment vibration, shaking and impact. It is especially suitable for vibration-prone working scenarios such as automotive electronics and industrial control equipment. After thousands of plug-in tests, the contact pin still maintains good elasticity and clamping force, with long service life and low replacement rate, reducing customer after-sales maintenance costs.
2.5 High Customization & Compatibility
We support full-series customization of pitch, row number, pin count, plating type and product height. All products are manufactured in strict accordance with international industry standards, with strong compatibility, and can be perfectly matched with mainstream brand male headers on the market. Whether it is standard mass production models or special customized models for special equipment, we can provide one-stop matching solutions to meet the differentiated design needs of different customers.
Wide Application Scenarios
With its compact structure, stable performance and strong adaptability, our SMT female headers are widely used in various high-precision, miniaturized and automated electronic equipment, covering consumer electronics, industrial control, automotive electronics, smart home, communication equipment and other fields, becoming an indispensable core connecting component in electronic circuit design.
Consumer Electronics: Smart phones, tablet computers, Bluetooth devices, wearable devices, digital cameras, audio and video equipment, etc. The miniaturized SMT structure meets the ultra-thin and portable design requirements of consumer electronics, ensuring stable signal transmission of equipment.
Industrial Control Equipment: PLC control panels, industrial sensors, instrumentation, automation control modules, industrial communication equipment. The product's high temperature resistance, vibration resistance and stable performance adapt to harsh industrial working environments and ensure the continuous and stable operation of industrial equipment.
Automotive Electronics: On-board control modules, automotive sensors, car multimedia systems, new energy vehicle electronic components. It can withstand extreme temperature changes and vibration during vehicle driving, meeting the high-reliability requirements of automotive electronic systems.
Smart Home Devices: Smart speakers, smart lighting, smart switches, home security monitoring equipment, intelligent kitchen appliances. High cost performance and long service life reduce the overall manufacturing cost of smart home products and improve product market competitiveness.
Communication Equipment: 5G communication modules, routers, switches, base station auxiliary equipment, optical communication devices. Low contact resistance and high stability ensure high-speed and stable transmission of communication signals, avoiding signal delay and interruption.
Medical Electronic Equipment: Portable medical detectors, health monitoring equipment, medical control modules. High safety, flame retardant performance and stable quality meet the strict quality standards of medical electronic products.
New Energy Equipment: Solar control modules, power management equipment, battery protection boards, new energy charging equipment. Excellent current bearing capacity and high temperature resistance adapt to the high-power working environment of new energy equipment.
FAQ
Q1: Are your SMT female headers fully compatible with standard SMT reflow soldering processes?
A1: Yes. All our SMT female headers are made of high-temperature resistant materials, which can withstand 260℃ high temperature reflow soldering process, and will not deform or damage during soldering. The product structure and pad design fully conform to SMT automated production standards, supporting tape-and-reel packaging and automatic pick-and-place, with high assembly yield.
Q2: What customization services can you provide for SMT female headers?
A2: We provide comprehensive personalized customization services, including different pitch sizes (0.8mm-2.54mm), single/double/multi-row structures, 2P-40P arbitrary pin counts, various surface plating processes (tin plating, gold plating), and different product height specifications. We can also design and produce special structural products according to customers' PCB drawings and equipment design requirements.
Q3: What is the quality guarantee and service life of the product?
A3: All products pass strict quality inspection and performance testing before delivery, with stable batch consistency. The plug-in service life can reach more than 1000 times, and the normal service life in conventional working environments is more than 5 years. We provide long-term quality after-sales guarantee and technical support to solve product application problems for customers in a timely manner.
Q4: Can your products work stably in high-temperature and high-vibration environments?
A4: Absolutely. The product's operating temperature range is -40℃ to +85℃, adapting to most high and low temperature working scenarios. The reinforced locking structure and high-elastic contact design endow the product with excellent vibration resistance and anti-loosening performance, which can maintain stable connection in high-vibration environments such as industrial equipment and automotive electronics.
Q5: What are your product packaging and delivery cycles?
A5: Standard products adopt professional tape-and-reel packaging suitable for SMT automated production, with anti-static and dust-proof packaging to ensure product quality during transportation. Standard models are in sufficient stock with fast delivery; customized products have a reasonable production cycle, and we will arrange production and delivery as quickly as possible according to customer order requirements.
